Electronic Brake Control Module: Diagrams

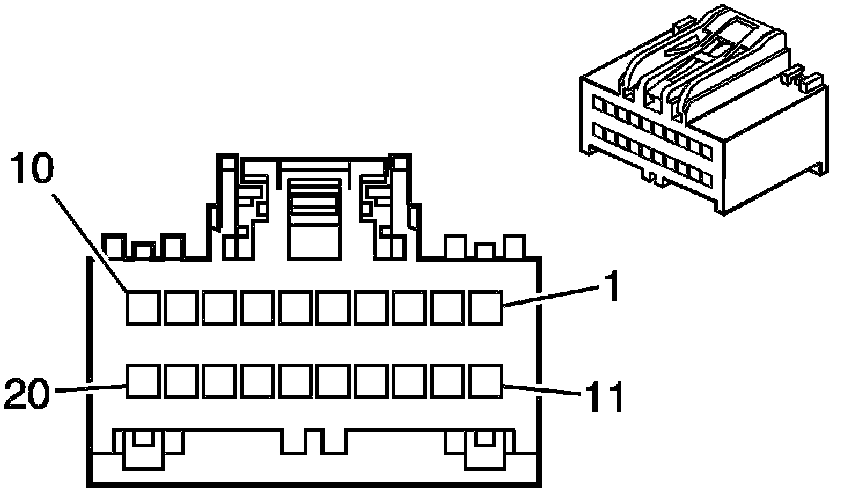

Component Connector End Views

K17 Electronic Brake Control Module
