Electrical Diagrams





SIR Schematics

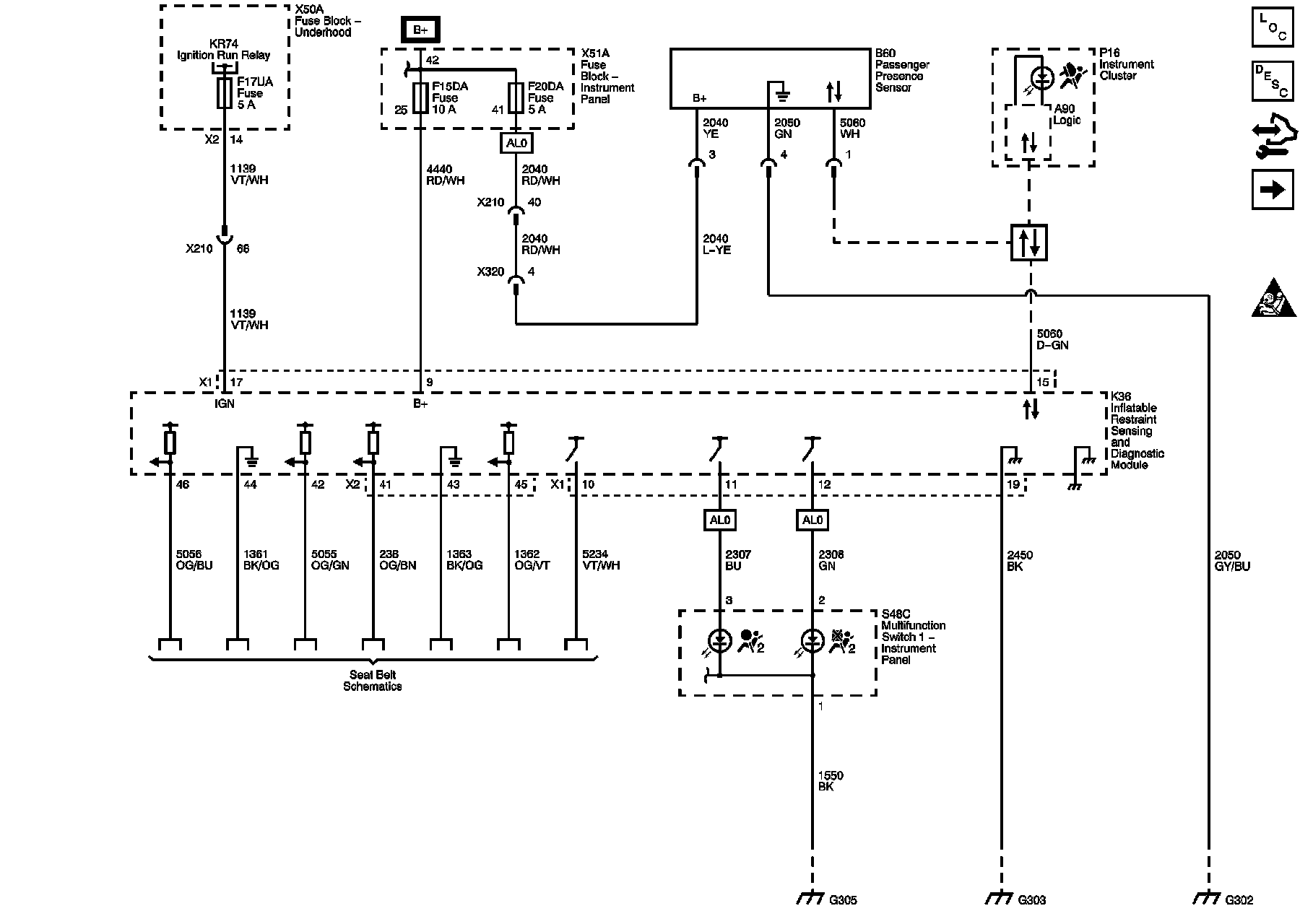

Power, Ground, Serial Data, Indicator and Passenger Presence





Frontal Impact Sensing and Deployment

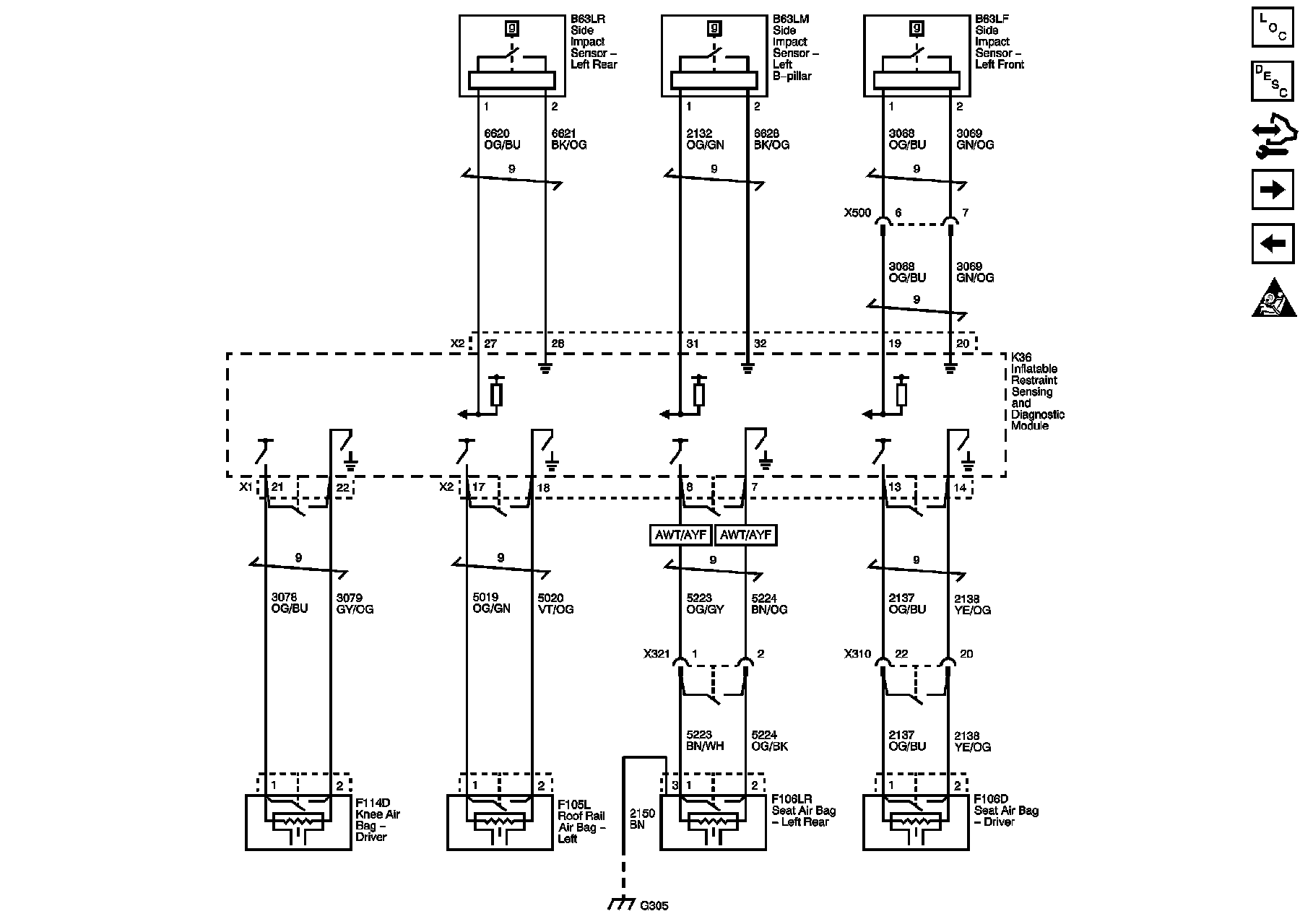

Side Impact Sensing and Deployment

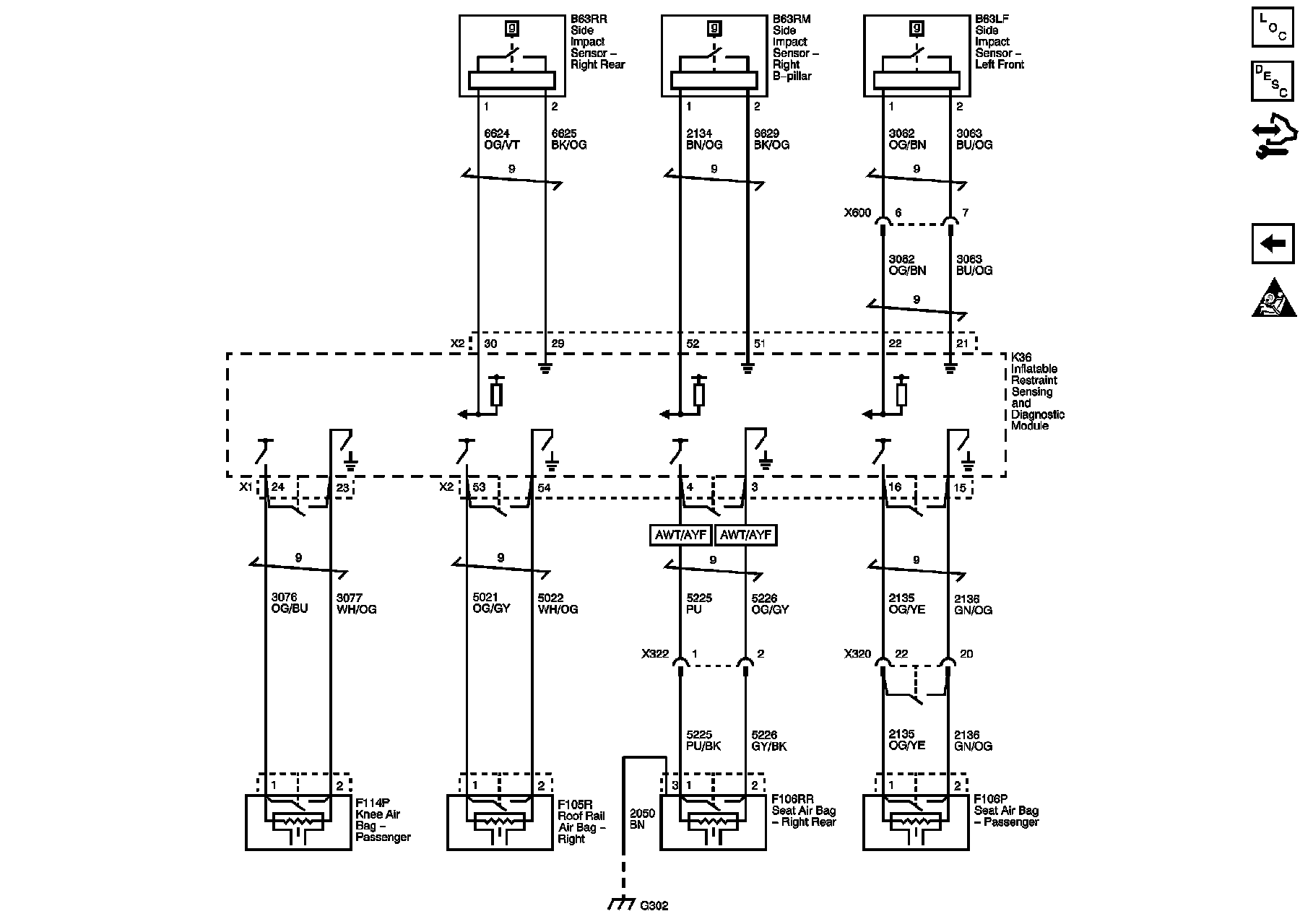

Side Impact Sensing and Deployment
