Electrical Diagrams





Moveable Window Schematics

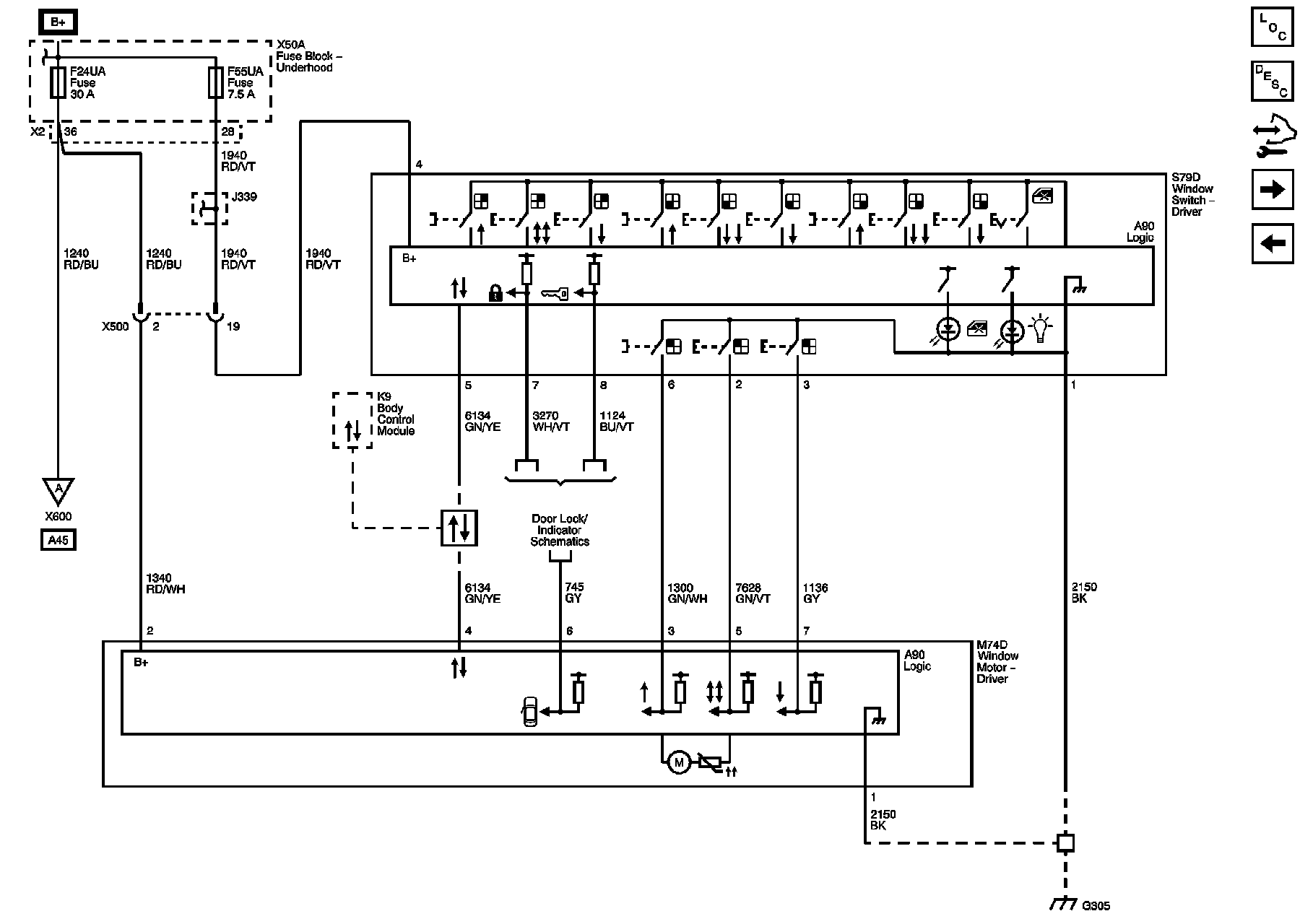

Driver Door (AEC)





Driver Door (AXG)





Passenger Door





Rear Doors
