Transmission Fluid Drain and Fill

Transmission Fluid Drain and Fill

Draining Procedure

Note:

* The fluid check bolt at the front of the transmission may not be opened.

* The transmission fluid drained out during the pre-delivery inspection may be re-used. New transmission fluid must be used during servicing work.
The transmission fluid must be brought up to operating temperature before draining.

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.

2. Remove the drivetrain and front suspension frame skid plate, if equipped. Refer to Drivetrain and Front Suspension Frame Skid Plate Replacement .




3. Clean away all dirt and debris from the transmission fluid drain fastener area.

4. Position an appropriate container under the transmission.

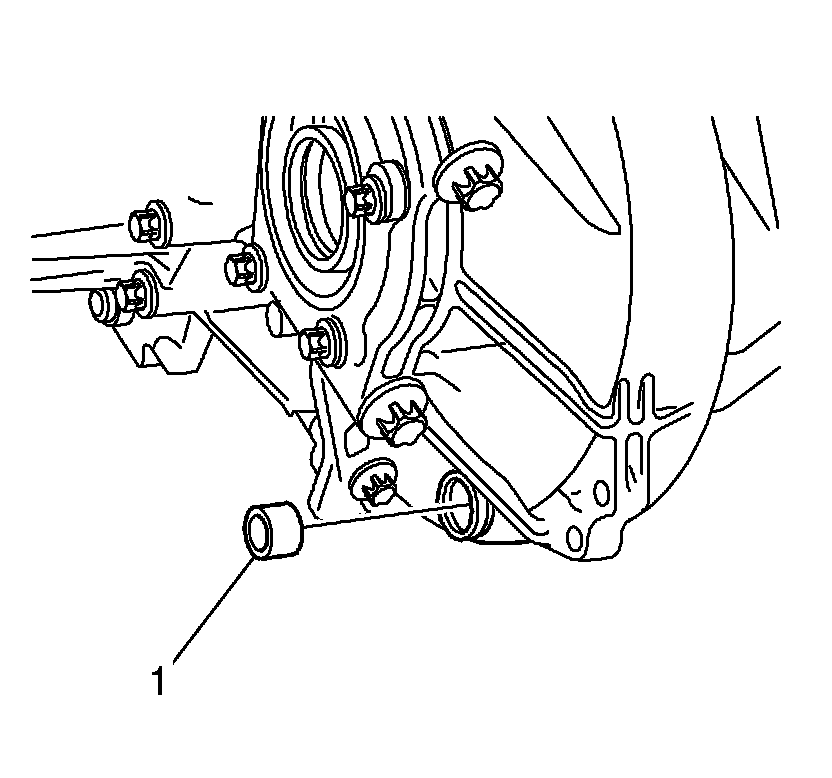

5. Remove the transmission fluid drain fastener (1).

6. Allow the transmission fluid to drain into the container.

Caution: Refer to Fastener Caution Fastener Caution.

7. Install a new transmission fluid drain fastener and tighten to 20 Nm (15 lb ft).

8. Remove the container used to catch the used transmission fluid from under the vehicle.

9. Install the drivetrain and front suspension frame skid plate, if equipped. Refer to Drivetrain and Front Suspension Frame Skid Plate Replacement .

Filling Procedure




1. Lower the vehicle.

2. Remove the engine control module with the bracket from the battery tray. Refer to Engine Control Module Replacement Service and Repair for the 1.2L or 1.4L engine, or Engine Control Module Replacement Service and Repair for the 1.6L or 1.8L engine.

3. Clean away all dirt and debris from the transmission fluid fill fastener area.

4. Remove the transmission fluid fill fastener (1).

5. Fill the transmission to just below the bottom of the fill fastener hole with the recommended fluid. Refer to Fluid and Lubricant Recommendations Maintenance and Manual Transmission Specifications Manual Transmission Specifications.

6. Install a new transmission fluid fill fastener and tighten to 30 Nm (22 lb ft).

7. Install the engine control module with the bracket to the battery tray. Refer to Engine Control Module Replacement Service and Repair for the 1.2L or 1.4L engine, or Engine Control Module Replacement Service and Repair for the 1.6L or 1.8L engine.
