Rear Brake Shield Replacement

Rear Brake Shield Replacement

Removal Procedure

Danger:
Do not use a service jack in locations other than those specified to lift this vehicle. Lifting the vehicle with a jack in those other locations could cause the vehicle to slip off the jack and roll; this could cause injury or death.


1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.

2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation Removal and Replacement.

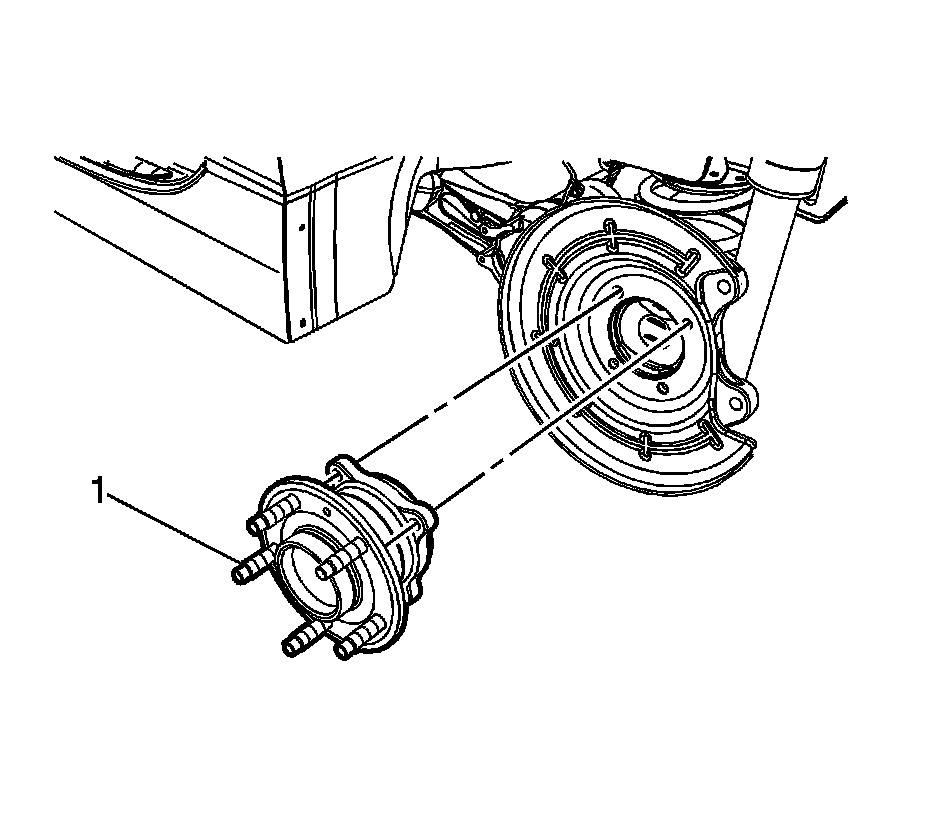

3. Remove the rear wheel bearing and hub assembly (1). Refer to Rear Wheel Bearing and Hub Replacement Rear Suspension.

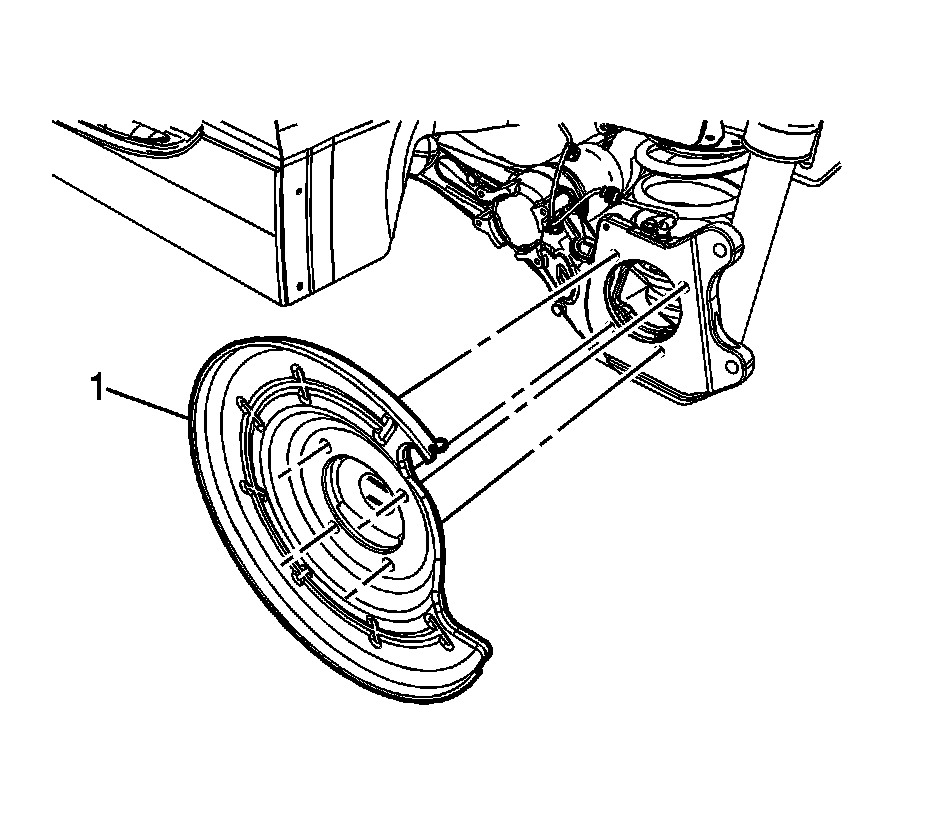

4. Remove the rear brake shield (1).

Installation Procedure





1. Install the rear brake shield (1).





2. Install the rear wheel bearing and hub assembly (1). Refer to Rear Wheel Bearing and Hub Replacement Rear Suspension.

3. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation Removal and Replacement.
