Cabin Temperature Sensor / Switch
>>
Air Temperature Sensor - Duct Lower
Air Temperature Sensor - Duct Lower

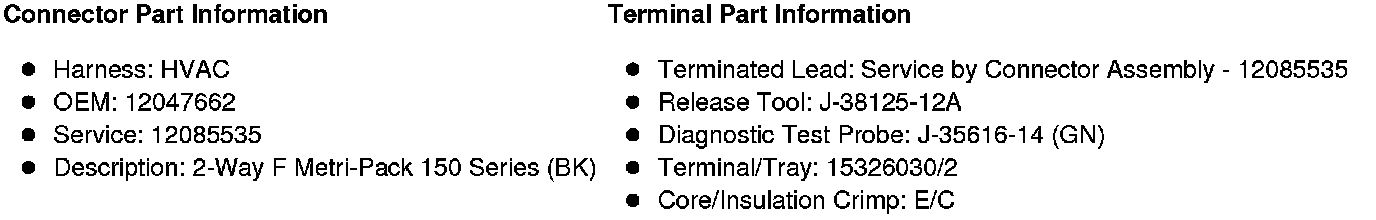

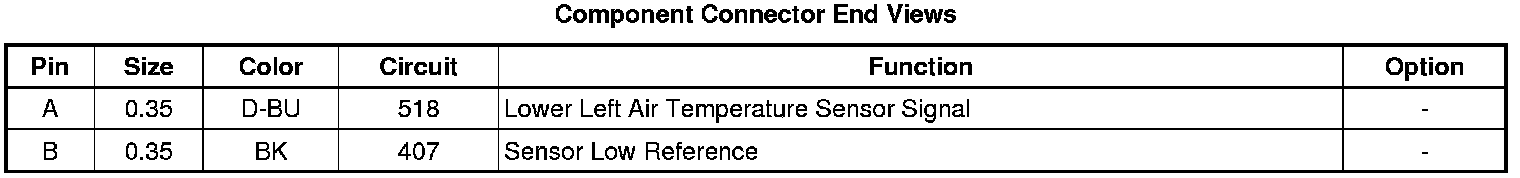

Component Connector End Views
B7B Air Temperature Sensor - Duct Lower
