Air Temperature Sensor - Duct Upper
Air Temperature Sensor - Duct Upper

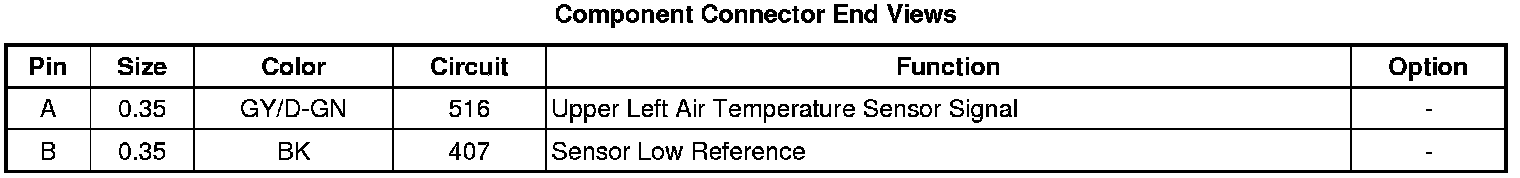

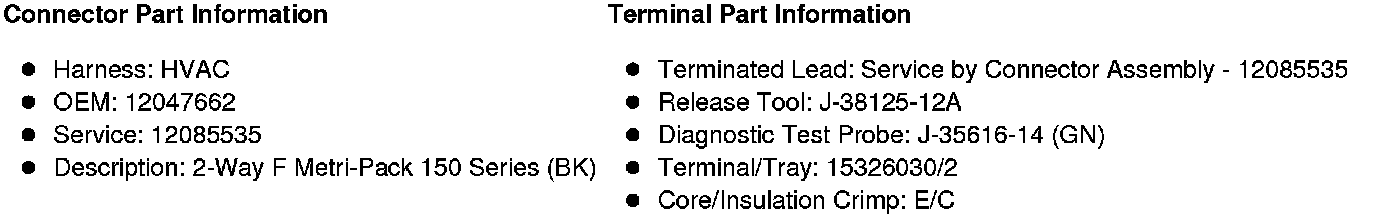

Component Connector End Views

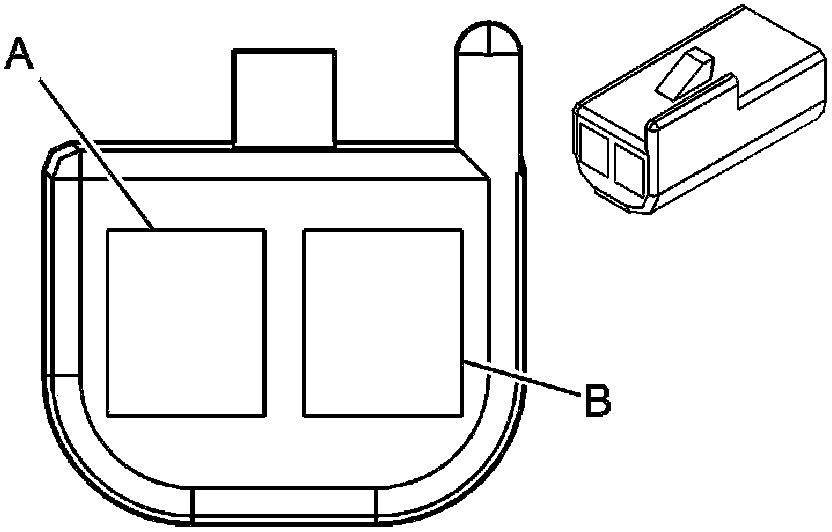

B7F Air Temperature Sensor - Duct Upper
