Door Handle Assembly - Right Rear
Door Handle Assembly - Right Rear

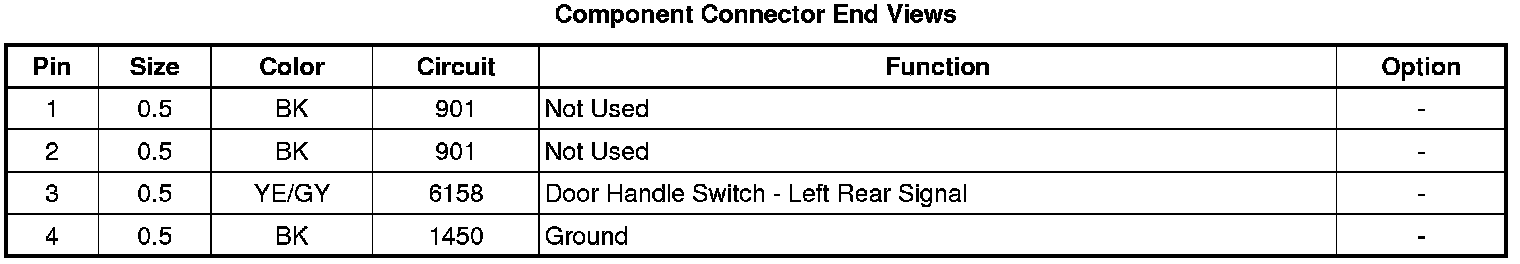

Component Connector End Views

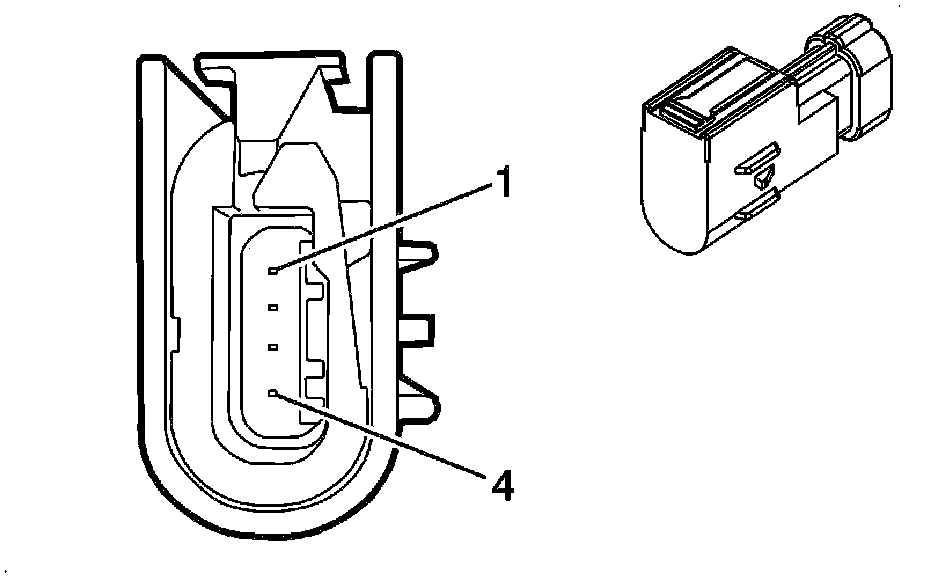

A24RR Door Handle Assembly - Right Rear
