Drive Motor 1 Temperature Sensor
Drive Motor 1 Temperature Sensor

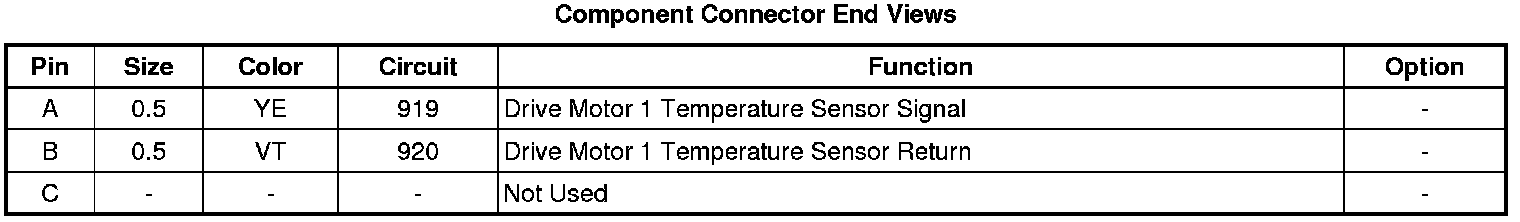

Component Connector End Views

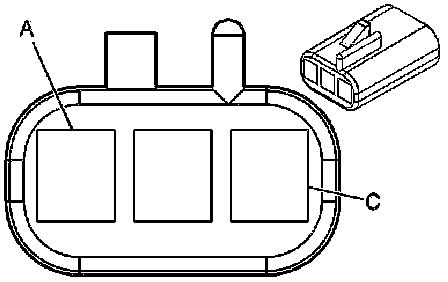

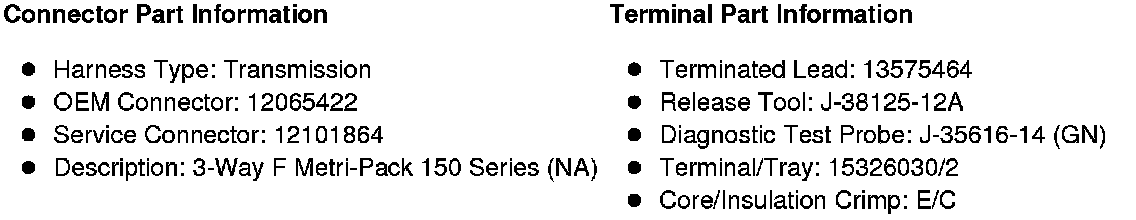

B207A Drive Motor 1 Temperature Sensor
