Evaporative Emissions Purge Solenoid Valve
Evaporative Emissions Purge Solenoid Valve

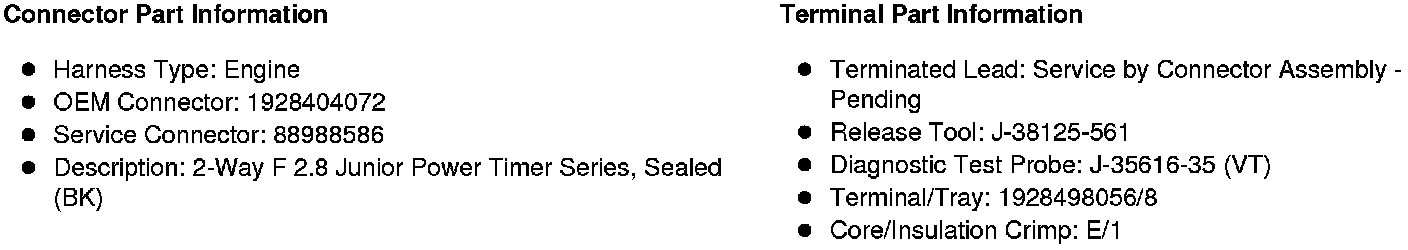

Component Connector End Views

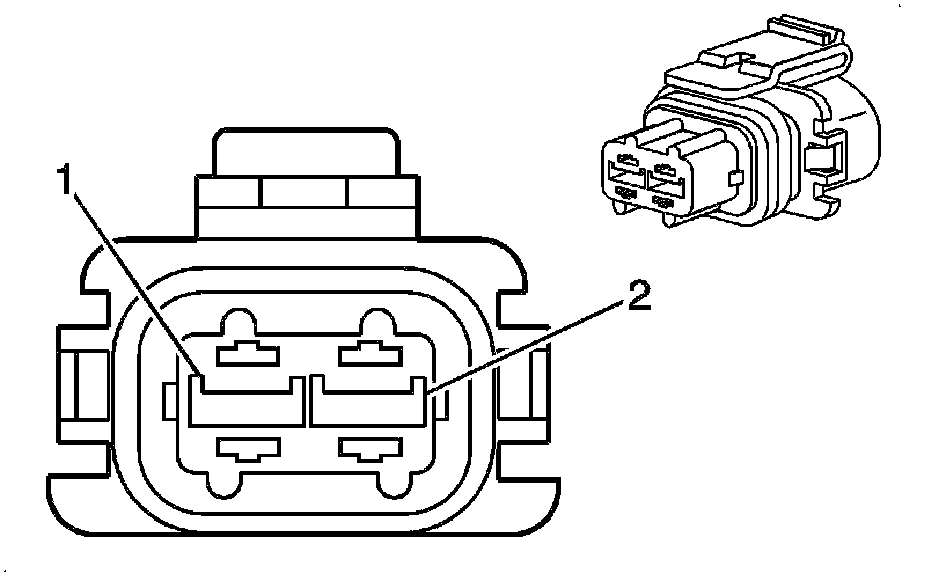

Q12 Evaporative Emissions Purge Solenoid Valve
