Hybrid/EV Battery Charger Receptacle
Hybrid/EV Battery Charger Receptacle

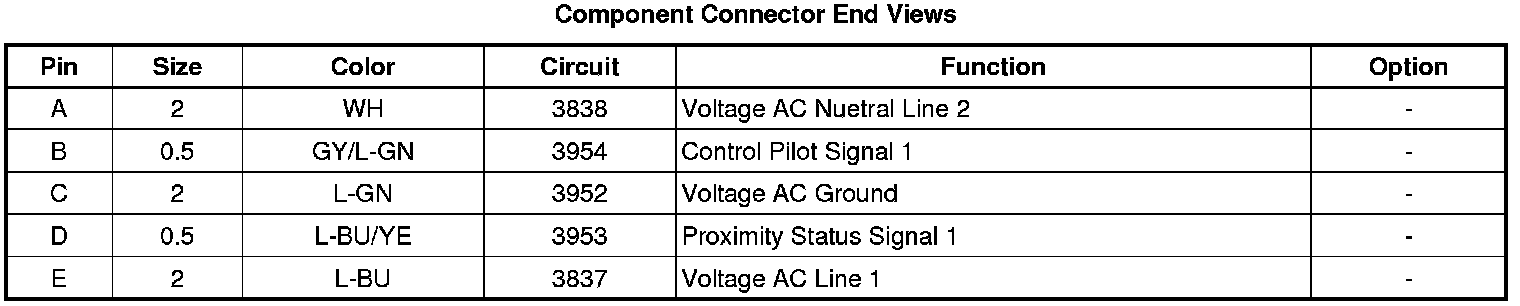

Component Connector End Views

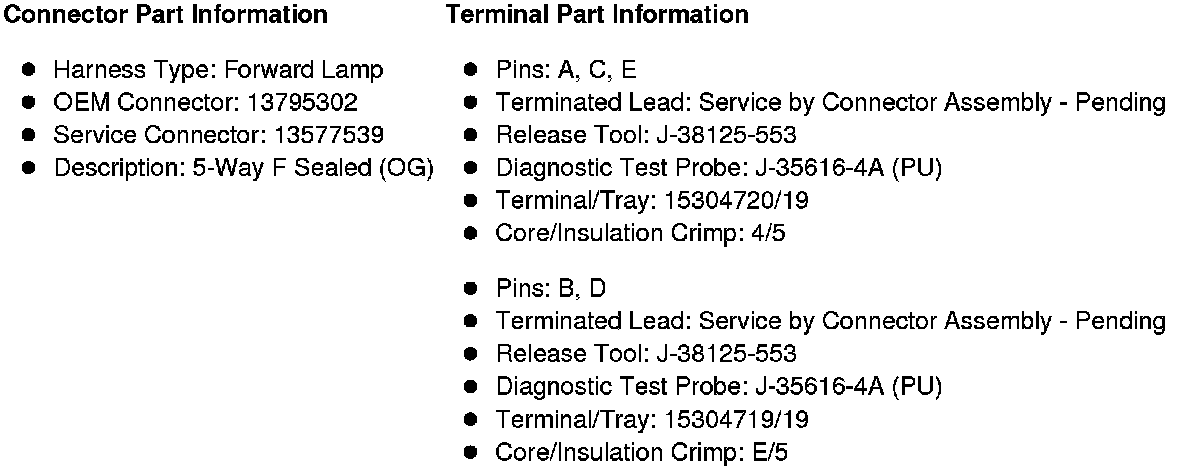

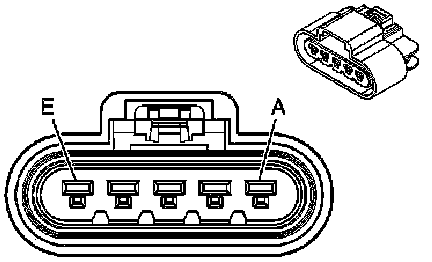

X98 Hybrid/EV Battery Charger Receptacle
