Hybrid/EV Battery Coolant Level Switch
Hybrid/EV Battery Coolant Level Switch
Component Connector End Views

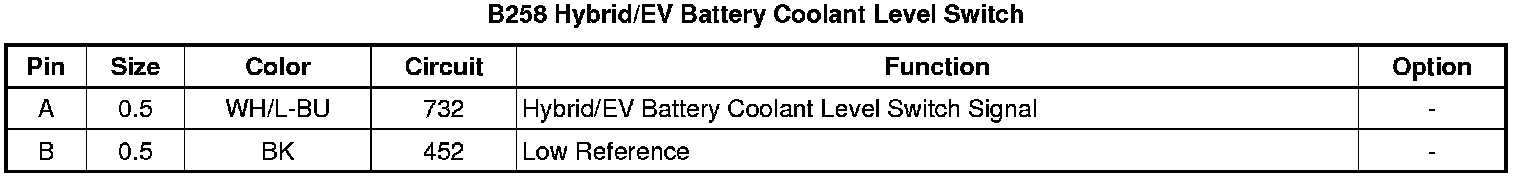

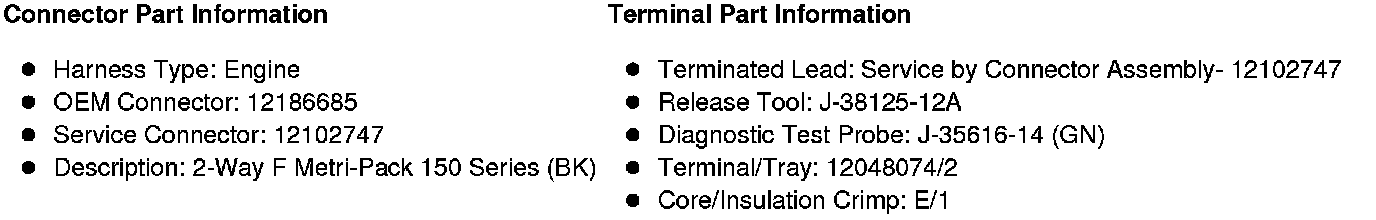

B258 Hybrid/EV Battery Coolant Level Switch
