Hybrid/EV Battery Pack Cell Section 2 X2
Hybrid/EV Battery Pack Cell Section 2 X2

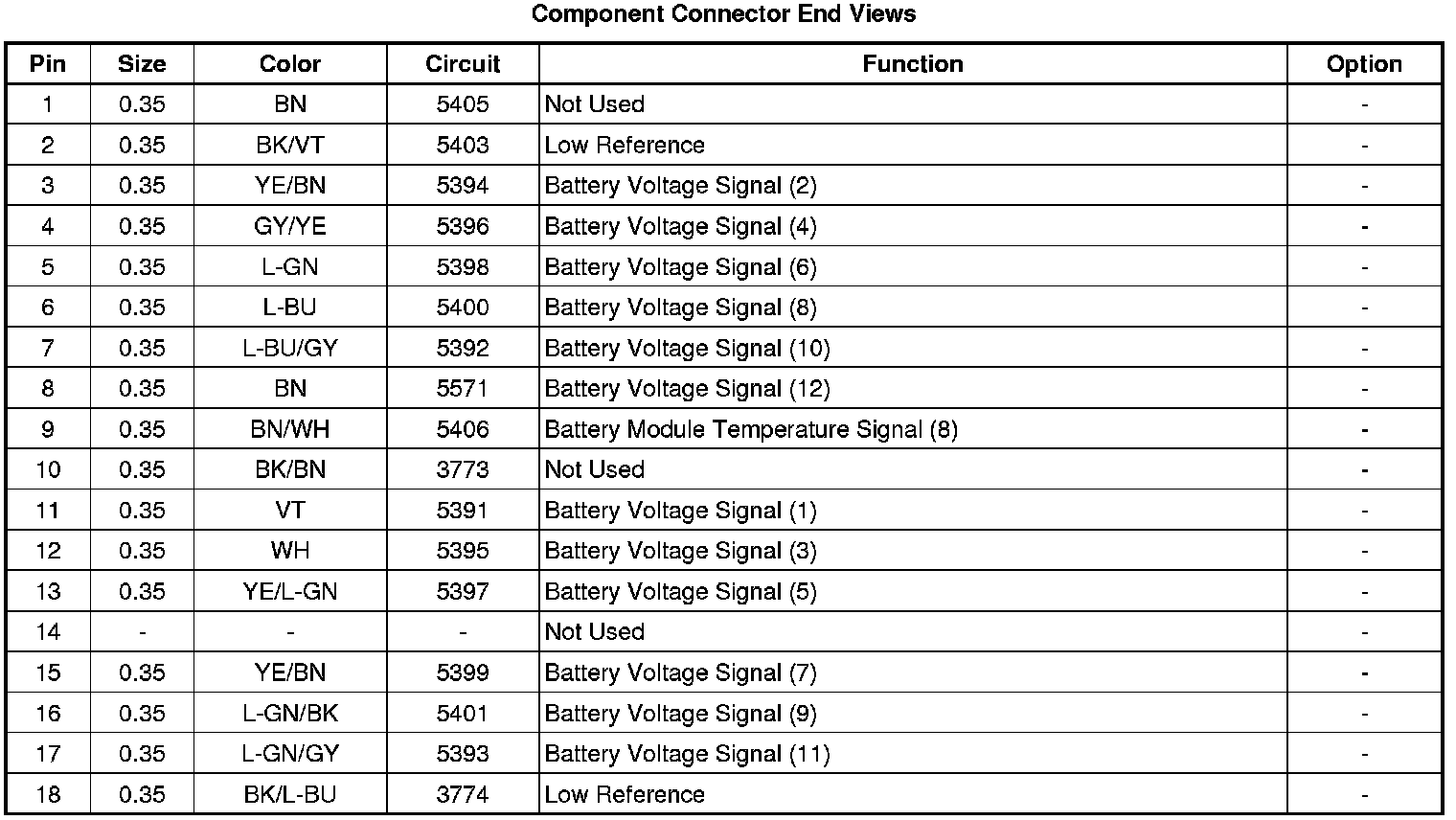

Component Connector End Views

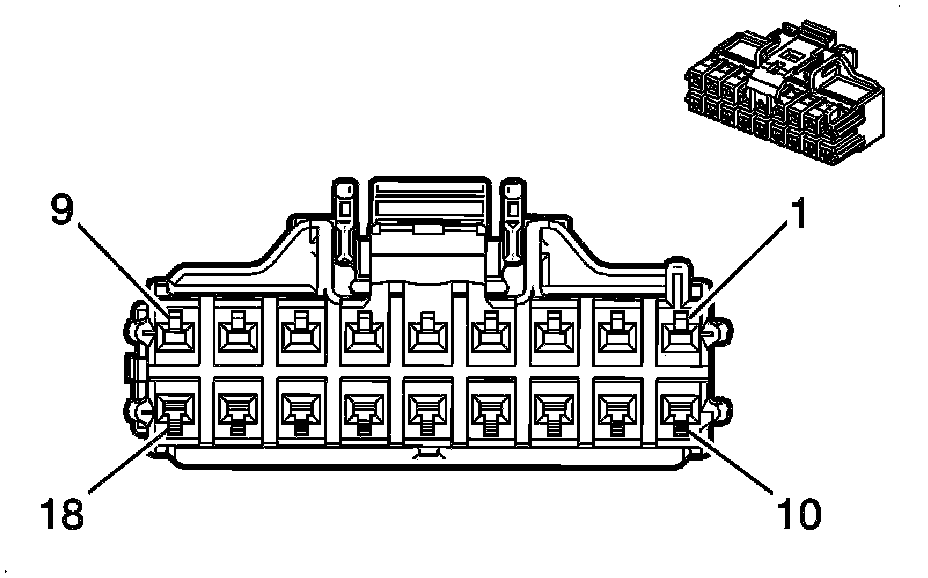

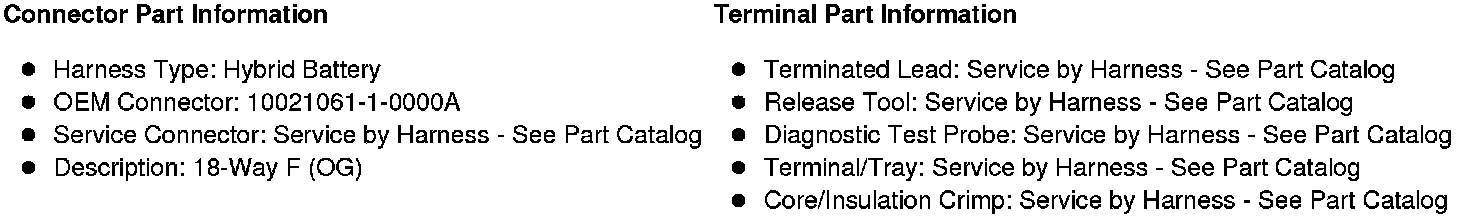

C4B Hybrid/EV Battery Pack Cell Section 2 X2
