Hybrid/EV Battery Pack Cell Section 3 X1
Hybrid/EV Battery Pack Cell Section 3 X1

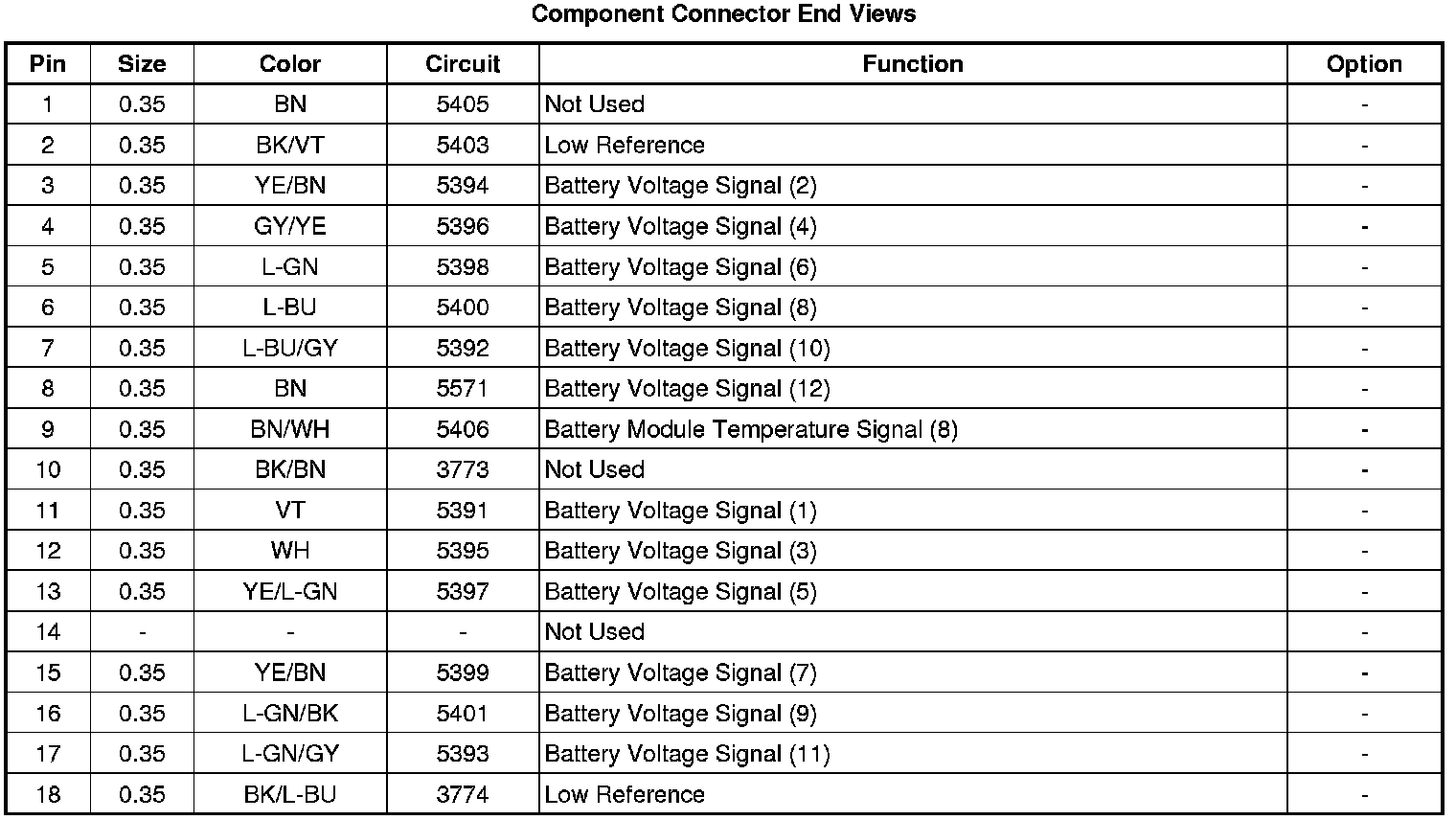

Component Connector End Views

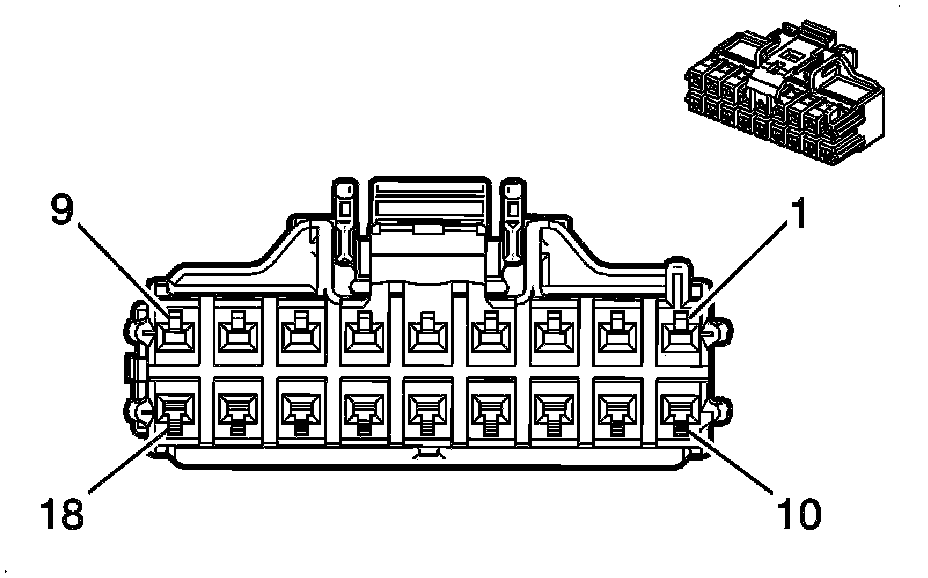

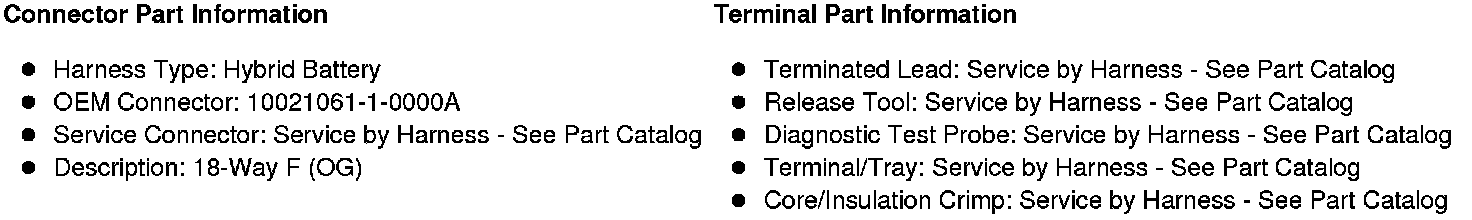

C4C Hybrid/EV Battery Pack Cell Section 3 X1
