Volt L4-1.4L Elect
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Hybrid/EV Battery Pack X4
Hybrid/EV Battery Pack X4

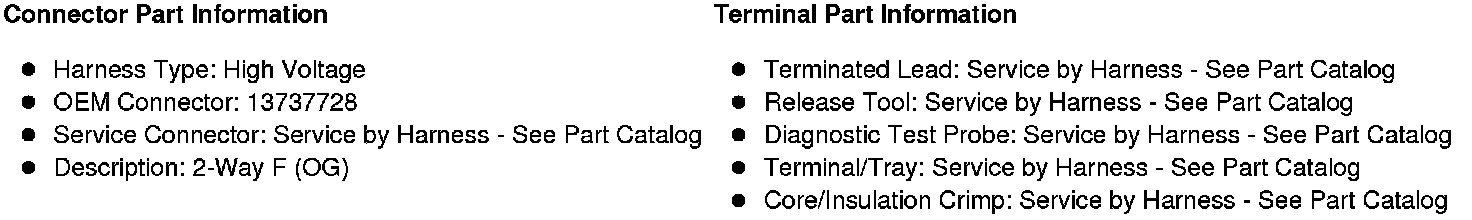

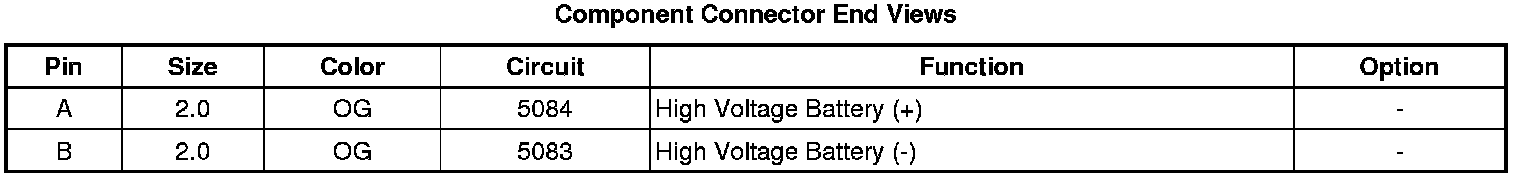

Component Connector End Views

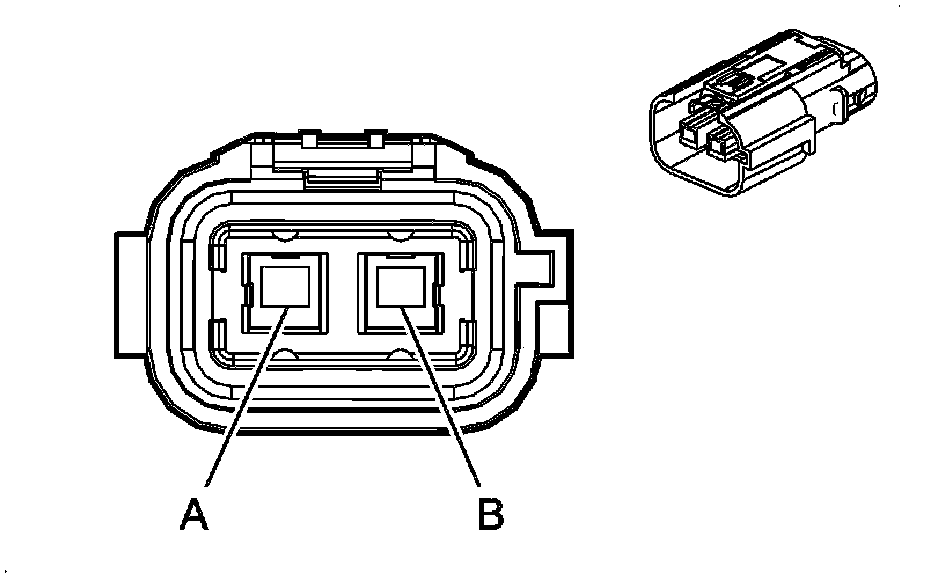

A4 Hybrid/EV Battery Pack X4
