Hybrid/EV Electronics Coolant Pump
Hybrid/EV Electronics Coolant Pump

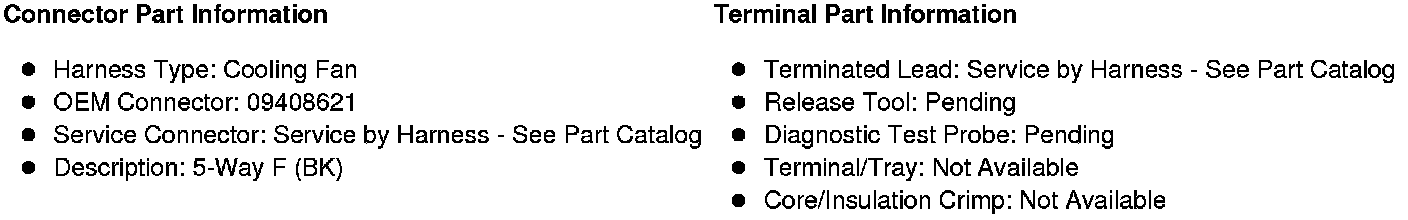

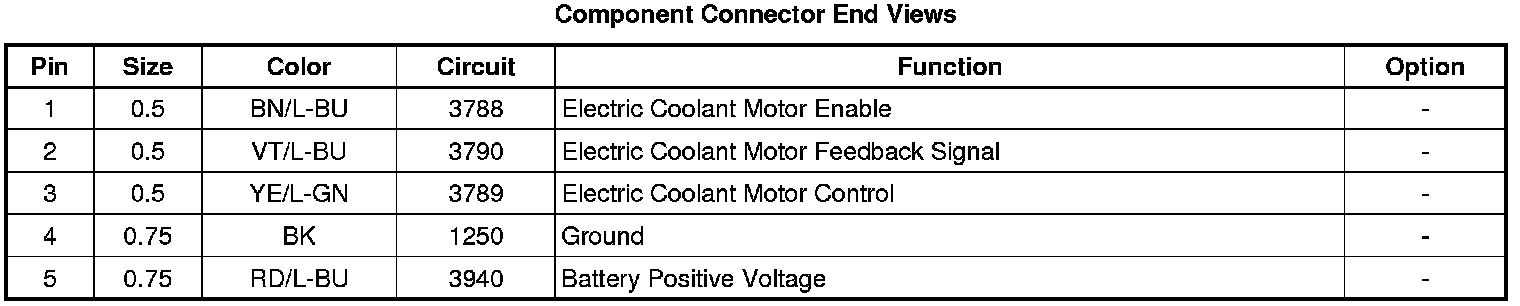

Component Connector End Views

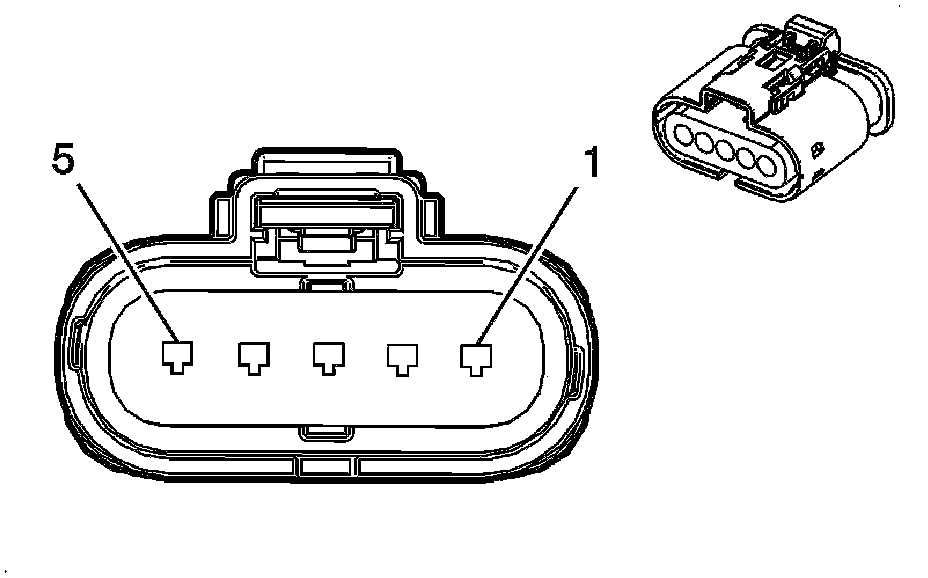

G35 Hybrid/EV Electronics Coolant Pump
