Multi-Function Switch - Overhead Console
Multi-Function Switch - Overhead Console

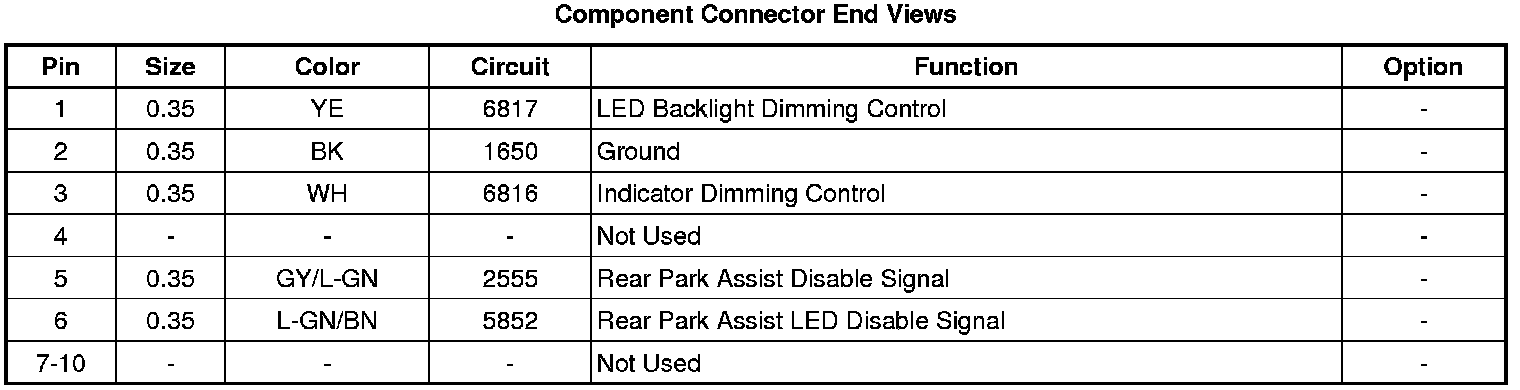

Component Connector End Views

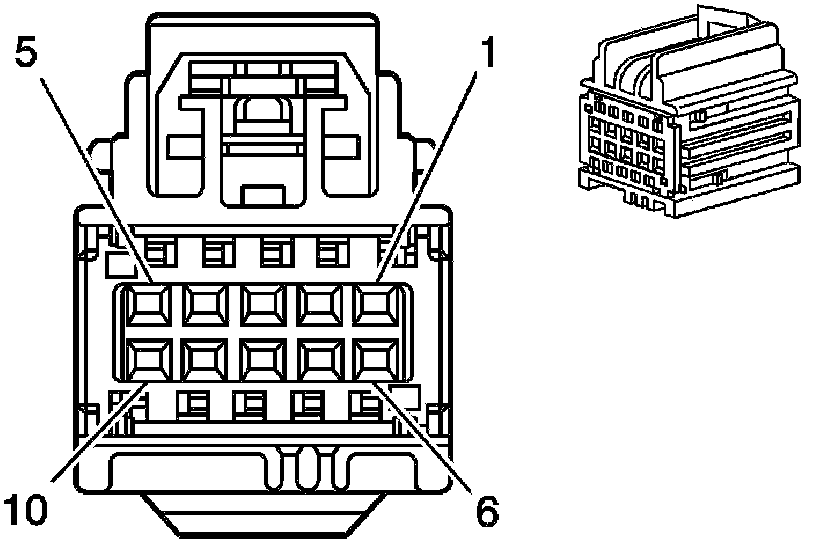

S48B Multi-Function Switch - Overhead Console
