Diagrams
>>
Connector Views
>>
Front Door Handle
>>
Door Handle Assembly - Driver
Door Handle Assembly - Driver

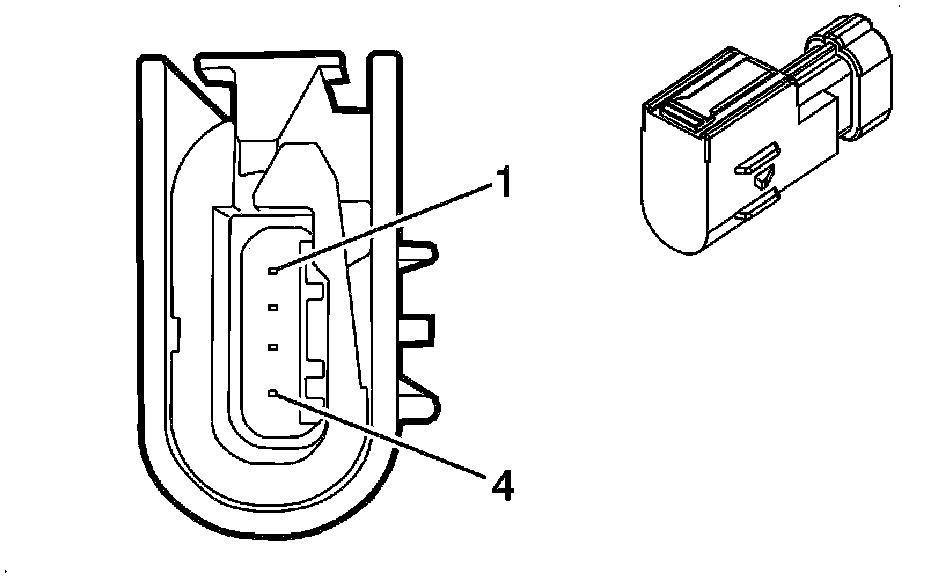

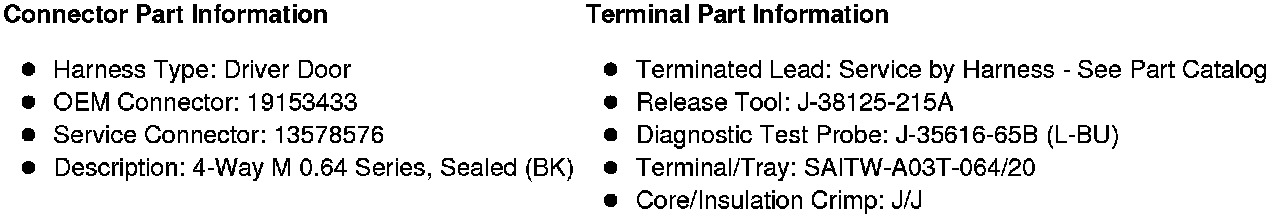

Component Connector End Views
A24D Door Handle Assembly - Driver
