Front Door Handle
>>
Door Handle Assembly - Passenger
Door Handle Assembly - Passenger

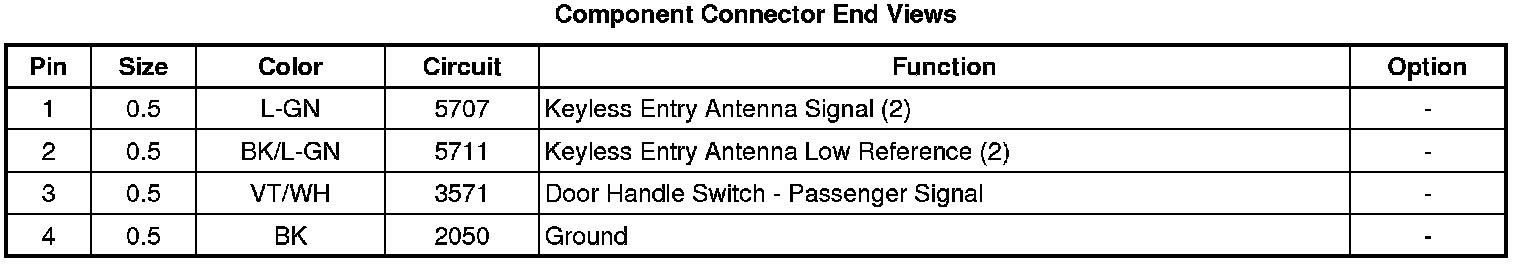

Component Connector End Views

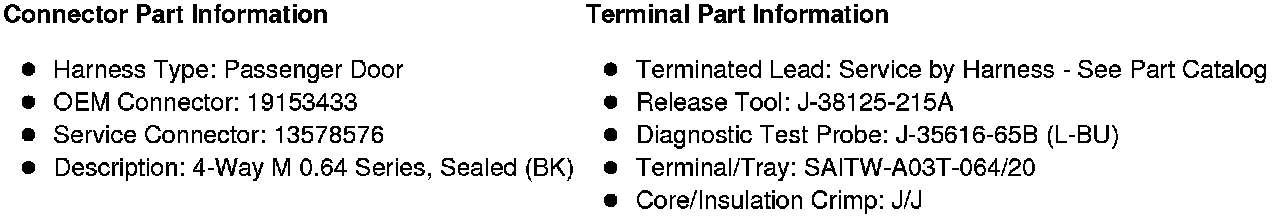

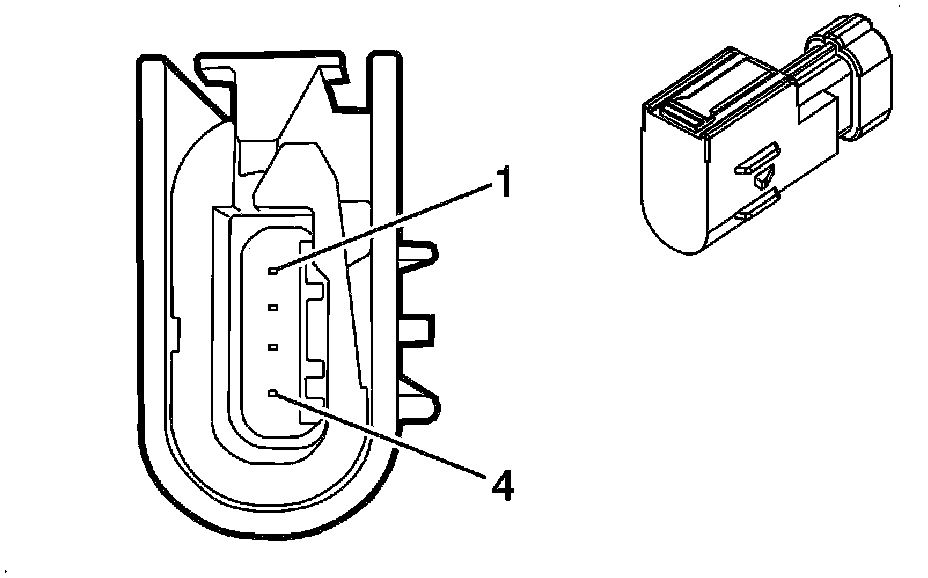

A24P Door Handle Assembly - Passenger
