Hybrid Electronics Coolant Temperature Sensor
Hybrid Electronics Coolant Temperature Sensor

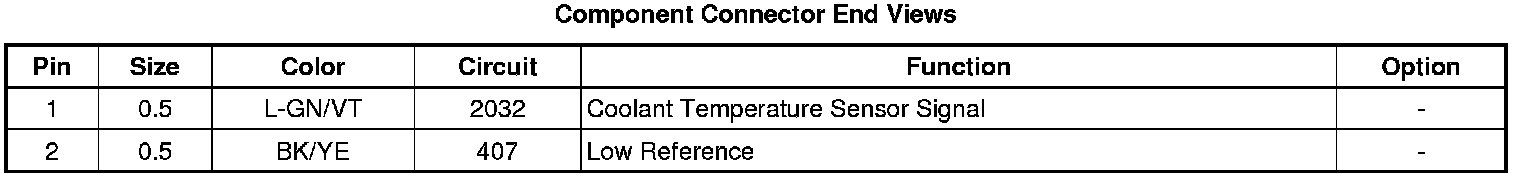

Component Connector End Views

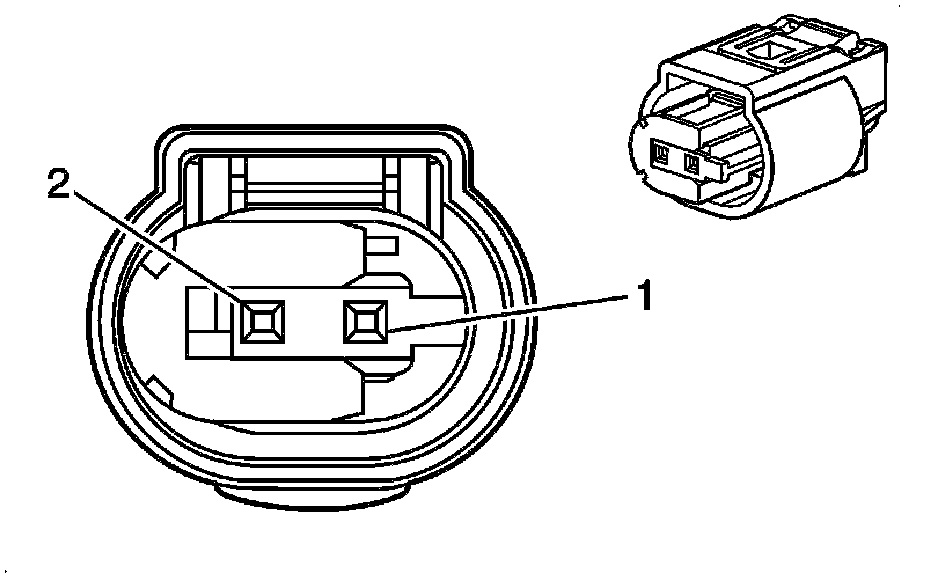

B202 Hybrid Electronics Coolant Temperature Sensor
