Hybrid/EV Battery Pack Coolant Temperature Sensor 2
Hybrid/EV Battery Pack Coolant Temperature Sensor 2

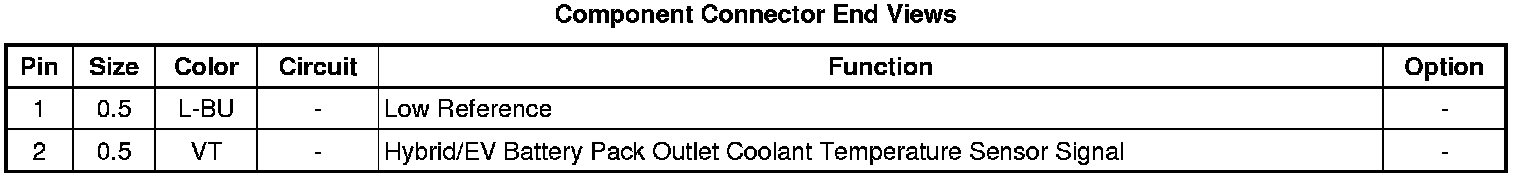

Component Connector End Views

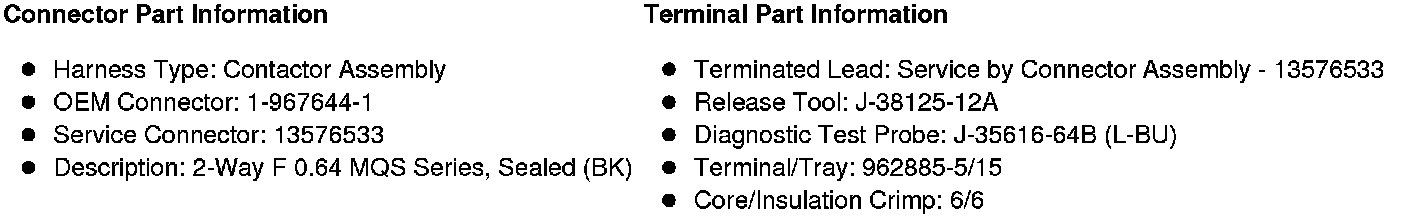

B204B Hybrid/EV Battery Pack Coolant Temperature Sensor 2
