Seat Temperature Element
>>
Seat Heating Element - Driver Cushion
Seat Heating Element - Driver Cushion

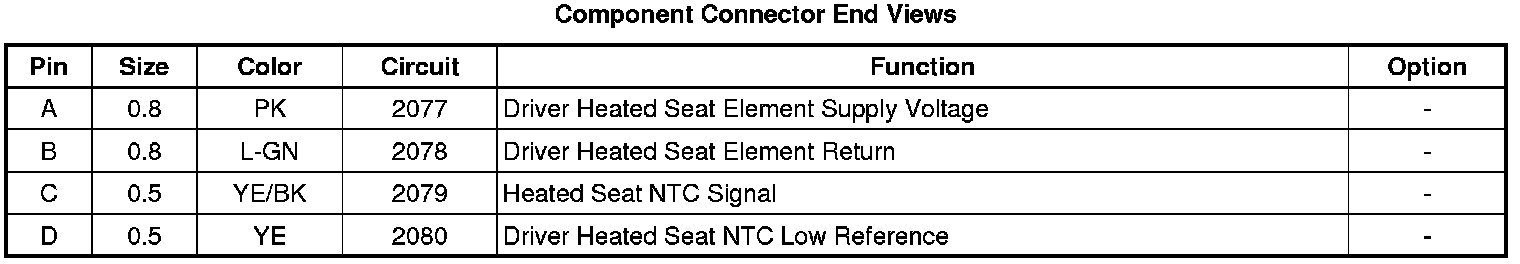

Component Connector End Views

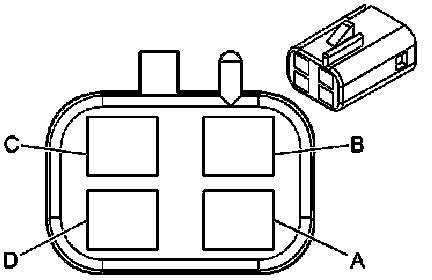

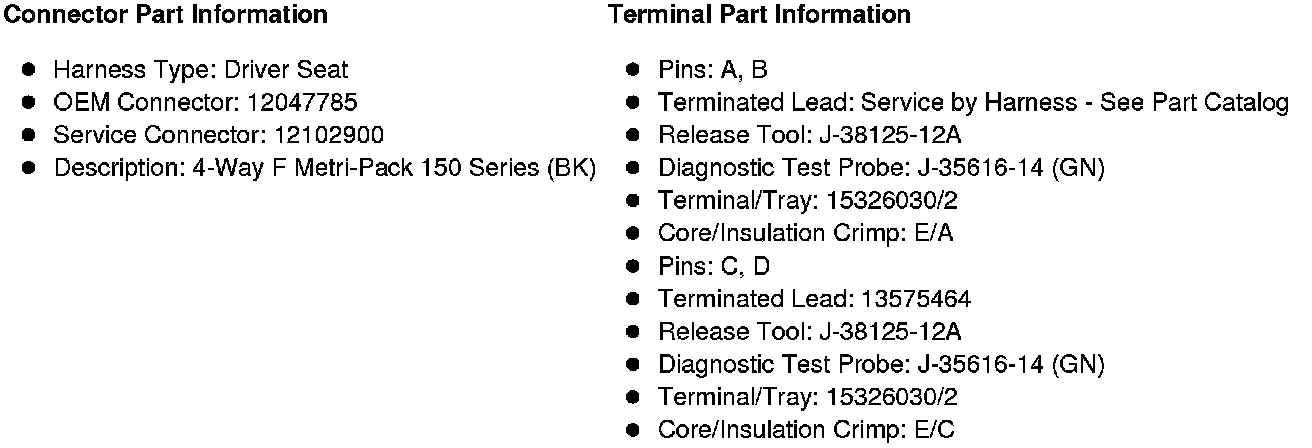

E14B Seat Heating Element - Driver Cushion
