Home
>>
Chevrolet
>>
2013
>>
Volt L4-1.4L Elect
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Turn Signal Lamp
>>
Turn Signal Lamp - Left Front Lower
Turn Signal Lamp - Left Front Lower

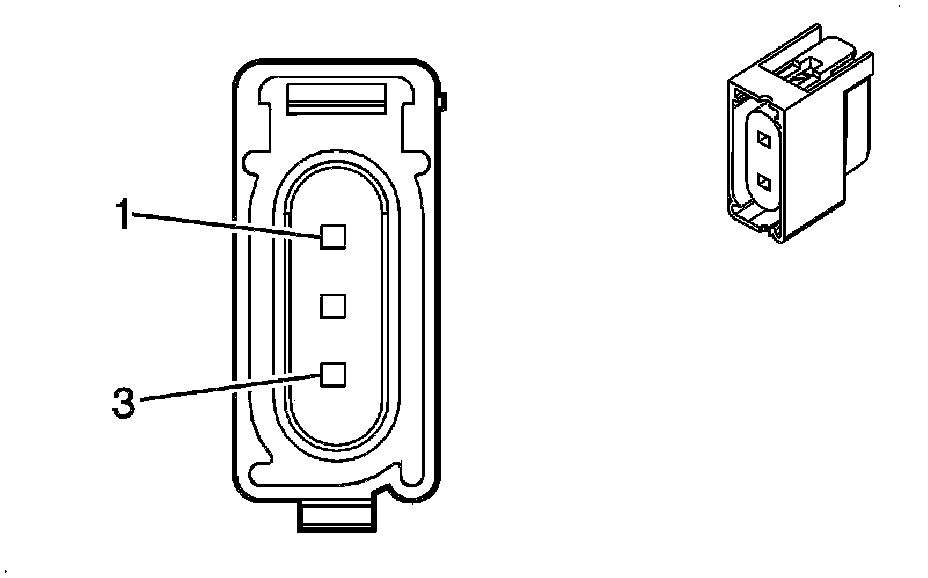

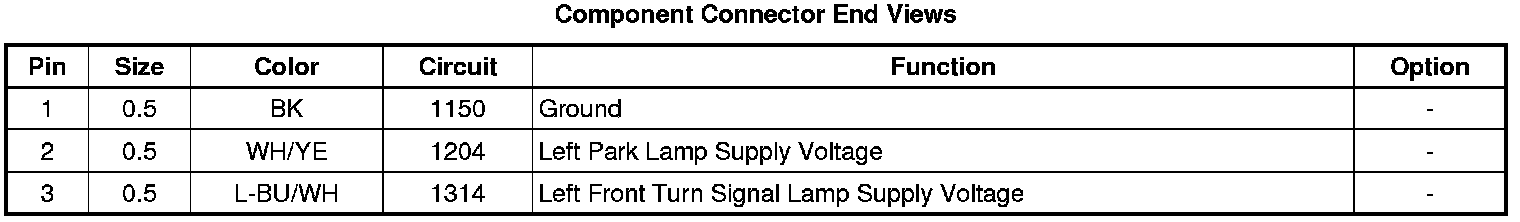

Component Connector End Views
E4U
Turn Signal Lamp
- Left Front Lower
