Home >> Chevrolet >> 2013 >> Volt L4-1.4L Elect >> Repair and Diagnosis >> Diagrams >> Fluid Diagrams >> Automatic Transmission/Transaxle >> Reverse Series Mode Engine On

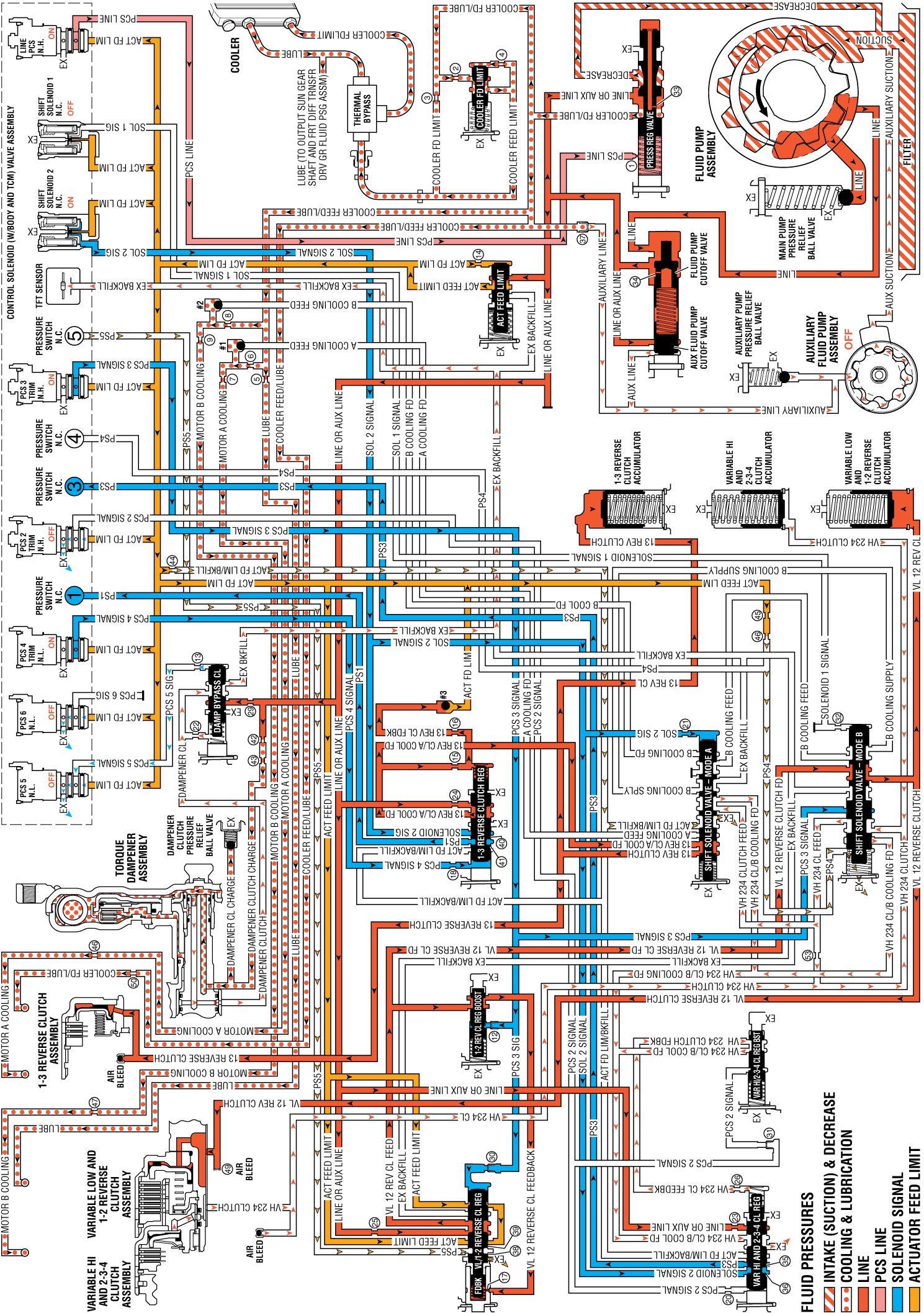

Reverse Series Mode Engine On





Reverse Series Mode Engine On
