Front of Engine Compartment Harness Routing
Front of Engine Compartment Harness Routing
Harness Routing Views

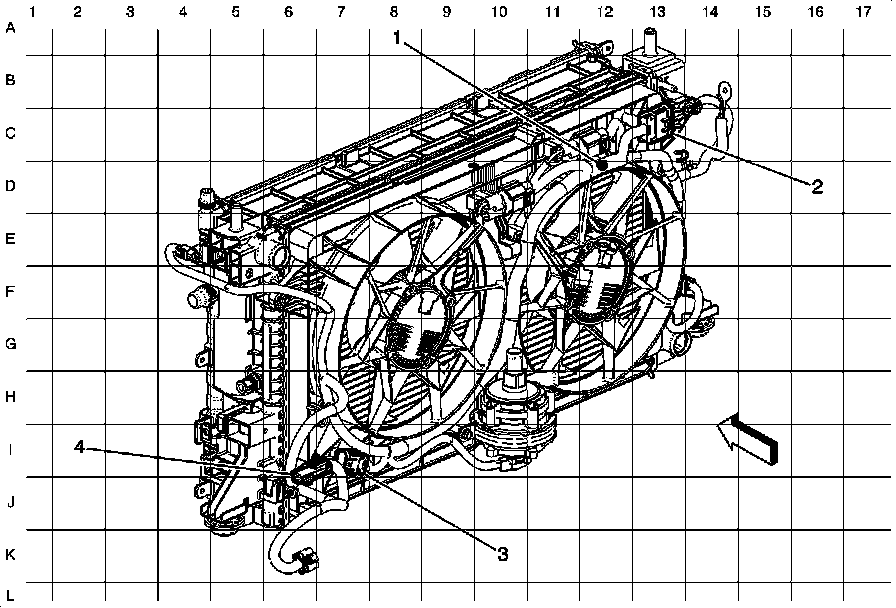

Front of Engine Compartment Harness Routing
1
- J110
2
- X103
3
- X102
4
- X104
