Charge Port Door Position Switch
Charge Port Door Position Switch

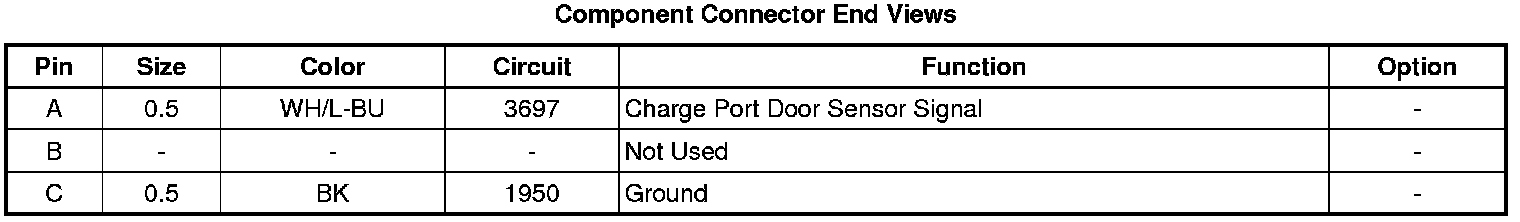

Component Connector End Views

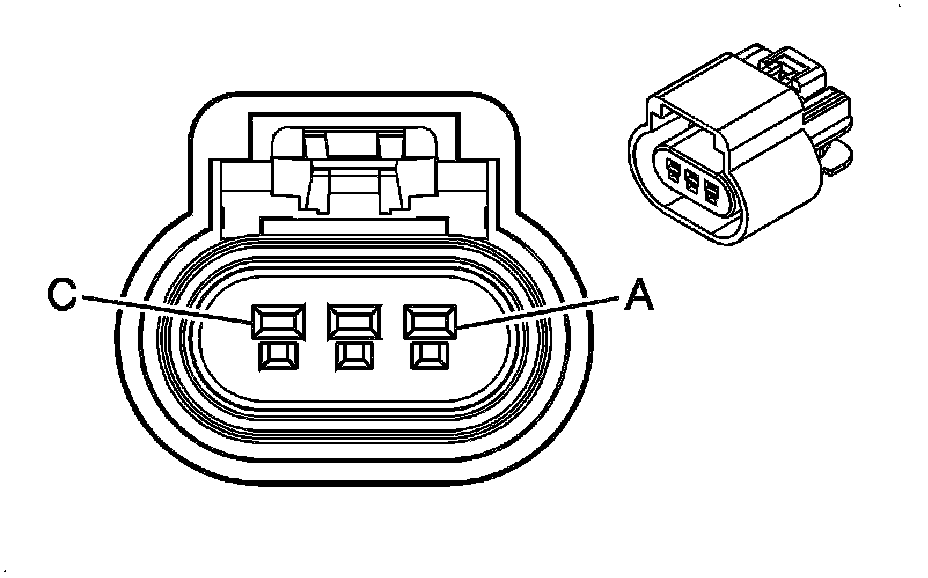

B197 Charge Port Door Position Switch
