Hybrid/EV Battery Contactor Assembly X1
Hybrid/EV Battery Contactor Assembly X1

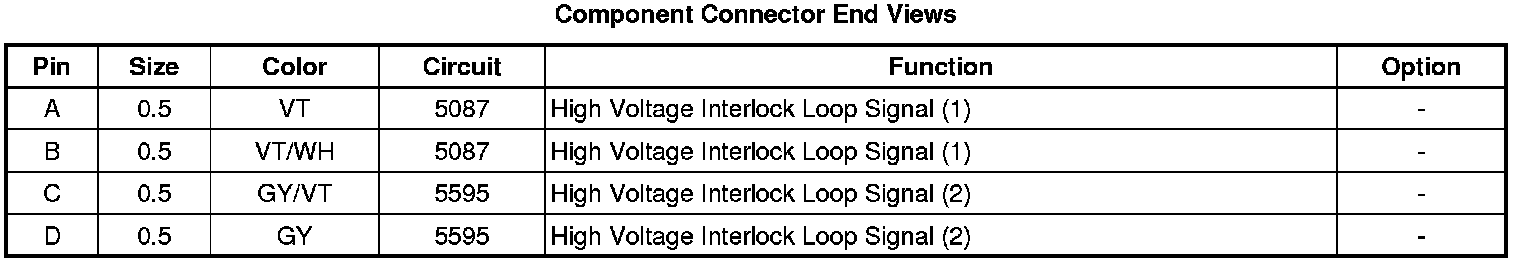

Component Connector End Views
A28 Hybrid/EV Battery Contactor Assembly X1
