Emission Control Systems

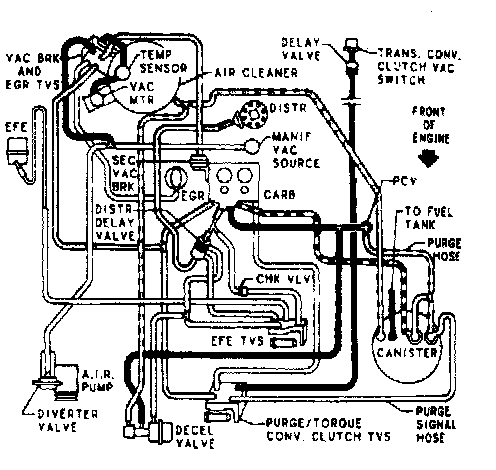

4bbl A/T Federal Emissions:

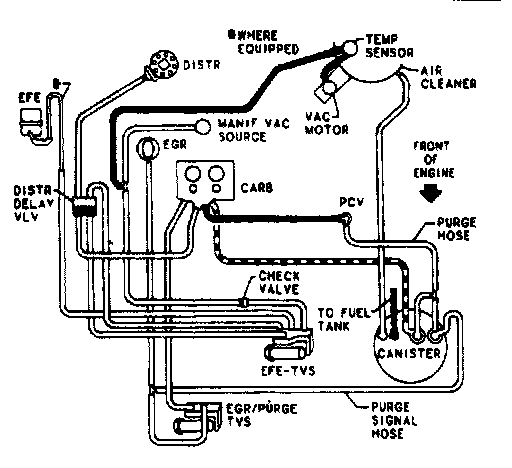

4bbl A/T Calif Emissions:

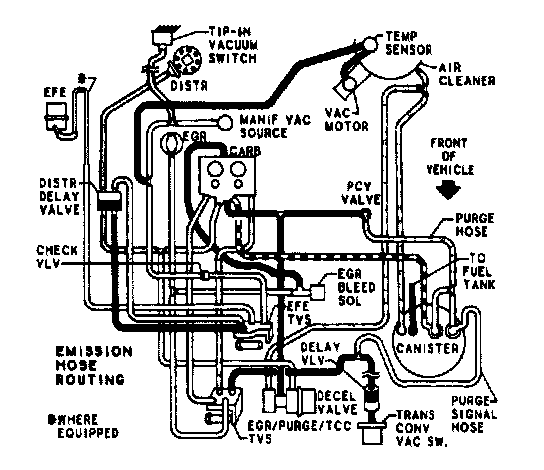

4bbl A/T High Altitude:





4bbl M/T AIR Federal Emissions:





4bbl M/T Federal Emissions:





4bbl M/T Federal Emissions High Altitude:
