Home >> Chevy Truck >> 1982 >> G 20 3/4 Ton Van V8-305 5.0L VIN H 4-bbl >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Emission Control Systems >> Federal Emissions

Federal Emissions

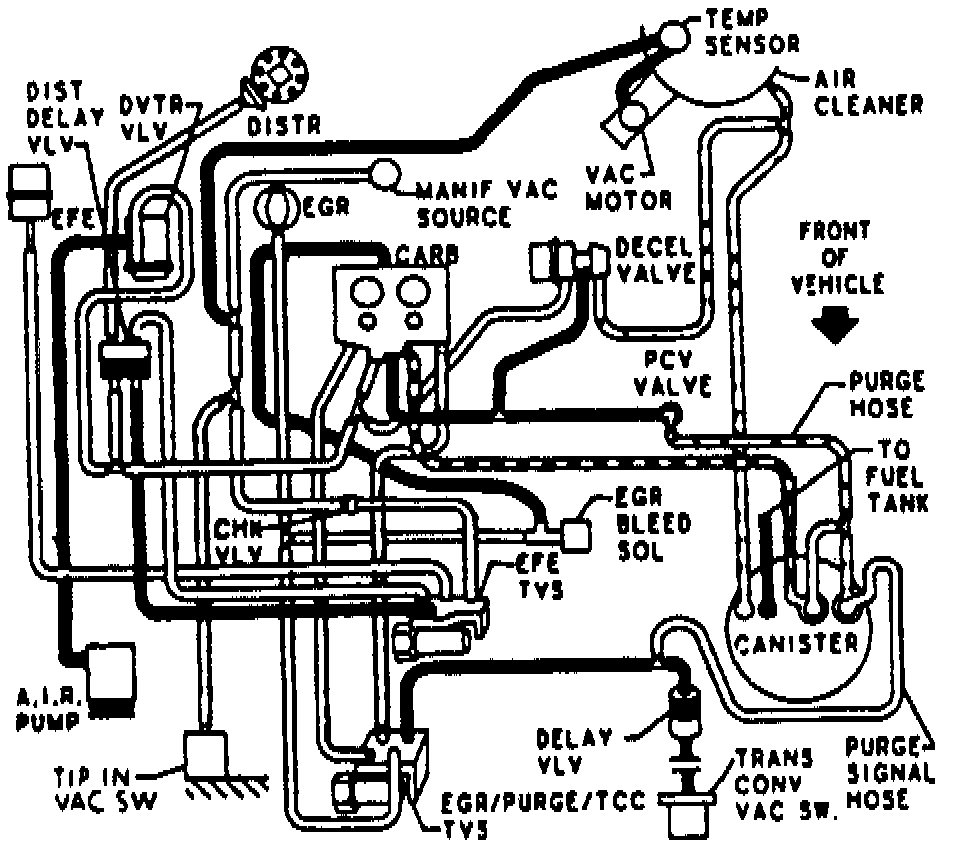

82 G10-20 V8-305 4bbl. Federal & A/T:
