Home >> Chevy Truck >> 1982 >> S10,T10 P/U,Blazer V6-173 2.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution

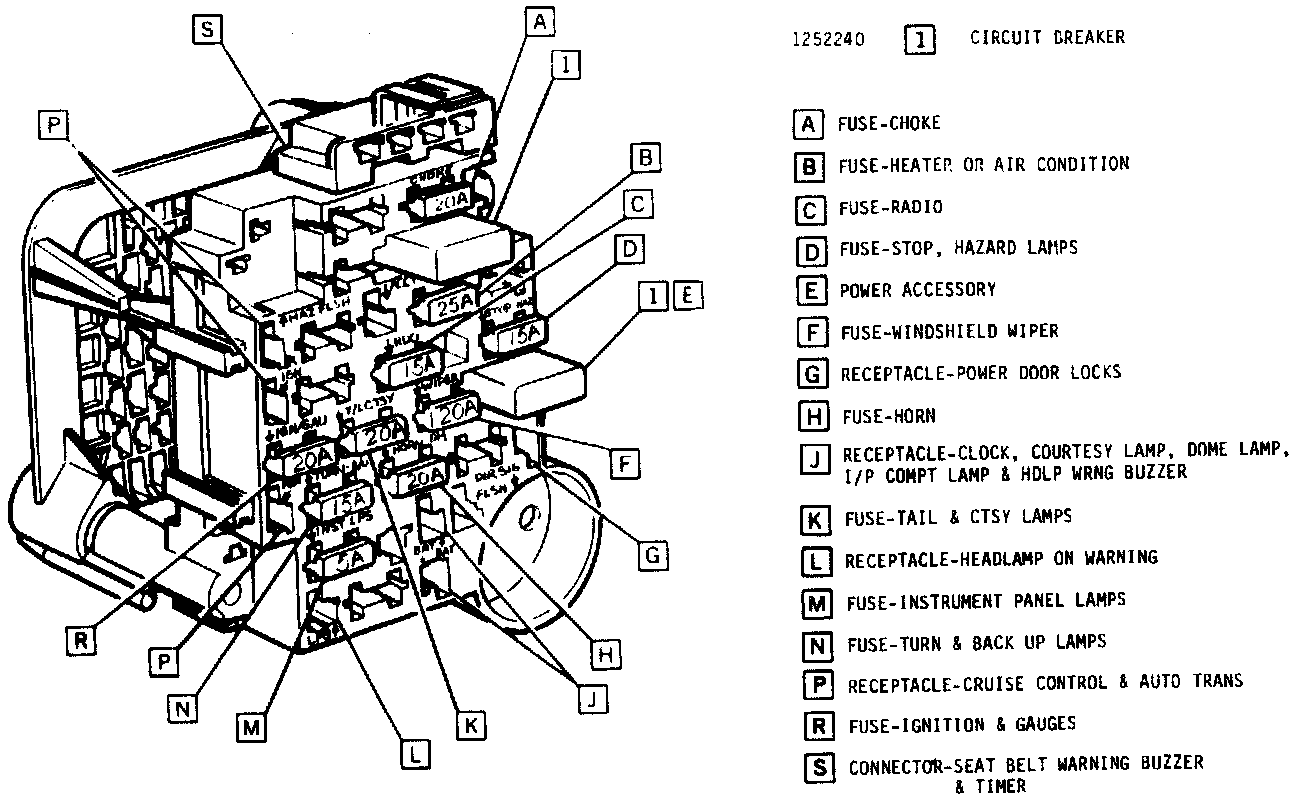

Power and Ground Distribution



5 Of 17:
