Home >> Chevy Truck >> 1982 >> S10,T10 P/U,Blazer V6-173 2.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

Computers and Control Systems: Locations

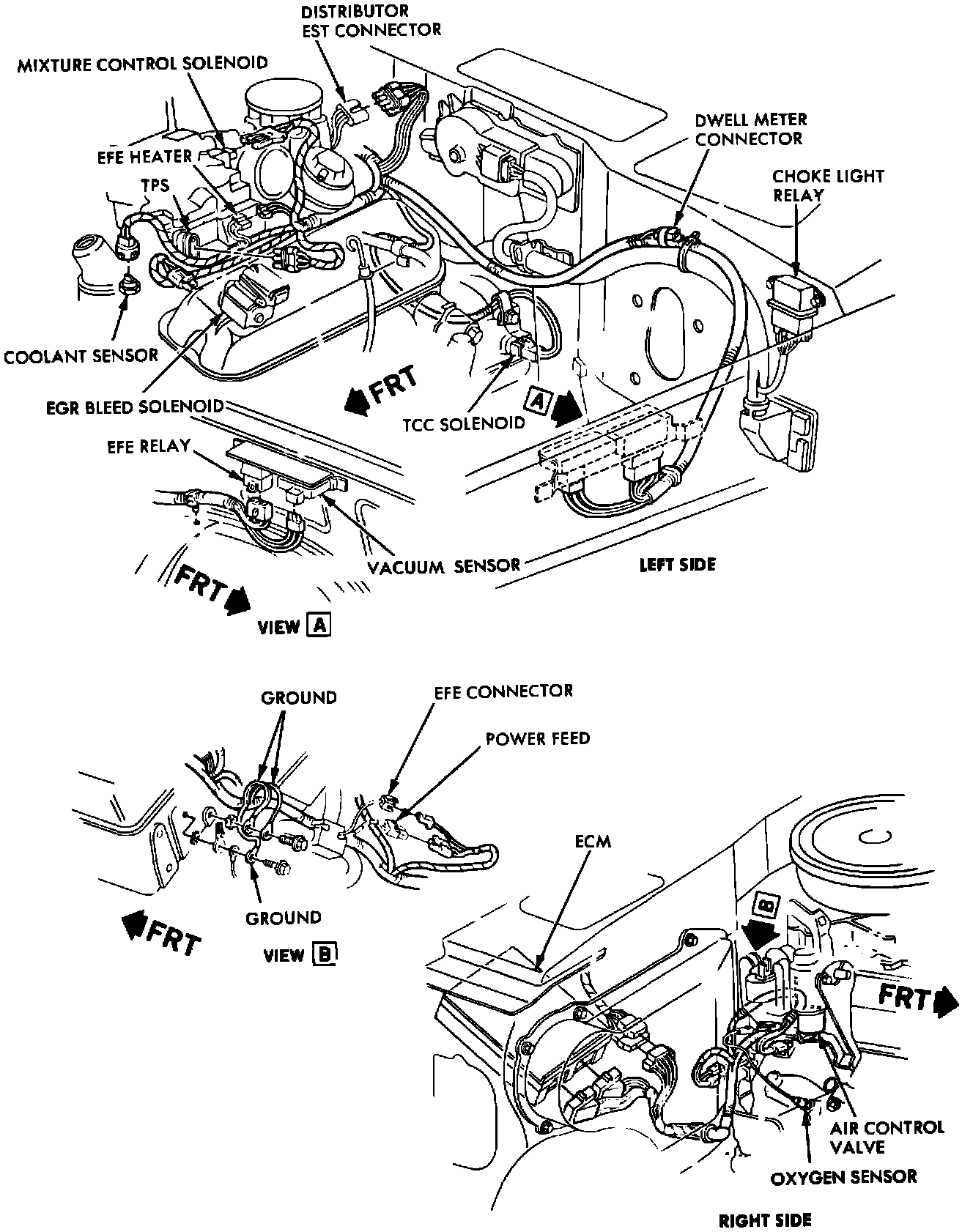

Fig. 34 - System Component Locations:
