A/T - Revised Link Detent Lever to Manual Valve
Number: 83-129Section: 7A (VIIc)
Date: Mar., 1984
Subject: NEW LINK DETENT LEVER TO
MANUAL VALVE ON THM 700-R4 TRANSMISSIONS
Model and Year: 1982-83 ALL PASSENGER CARS
AND TRUCKS
FIGURE 1 - PAST STYLE:

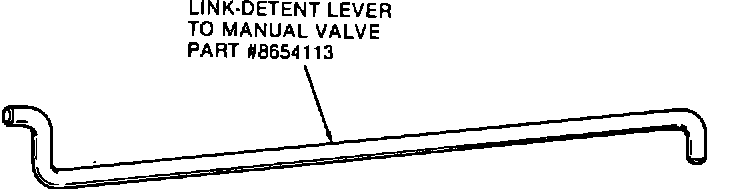

FIGURE 2 - NEW STYLE:
TO: ALL CHEVROLET DEALERS
Beginning July 5, 1983 (Julian Date 186), all THM 700-R4 transmissions were built with a new detent lever to manual valve link (Figure 2). This change provides a new retention of the detent lever to manual valve link without the clip (Figure 1, past style).
When servicing any THM 700-R4 transmission that requires replacement of the past detent lever to manual valve link and rod end clip link to detent lever (Figure 1), order the new detent lever to manual valve line, (Figure 2) P/N 8654113.
