Light Duty Truck Rear Axle Identification

Chevrolet Light Duty Trucks use either Chevrolet, Dana or Rockwell produced rear axle assemblies. See examples of production codes below.


CHEVROLET AXLE

EXAMPLE:

TUF G 001 1


Axle Code Source Code Day Code Shift Code

C = Buffalo Jan. 1=001 1st Shift
G = Gear & Axle K = GM of Canada


Code is stamped on top of right axle tube outboard of carrier.

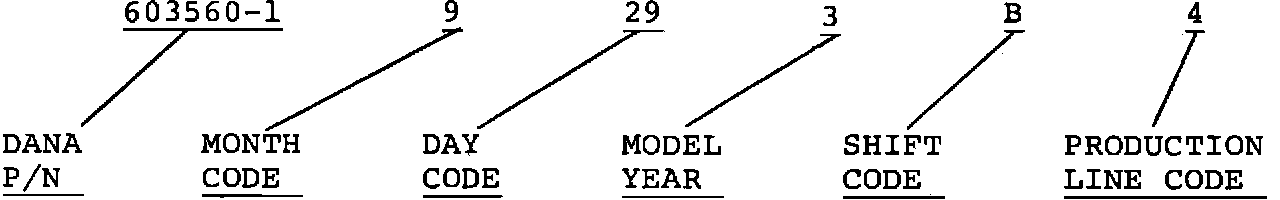

DANA AXLE:

DANA AXLE

EXAMPLE:

Code is stamped on rear surface of right axle tube.


The Chevrolet produced axles use a prefix code stamped into the axle tube for axle code identification. Dana produced axles use the same prefix code as the Chevrolet axles, but they display these codes on a strip of tape attached to the outboard end of the axle tube.

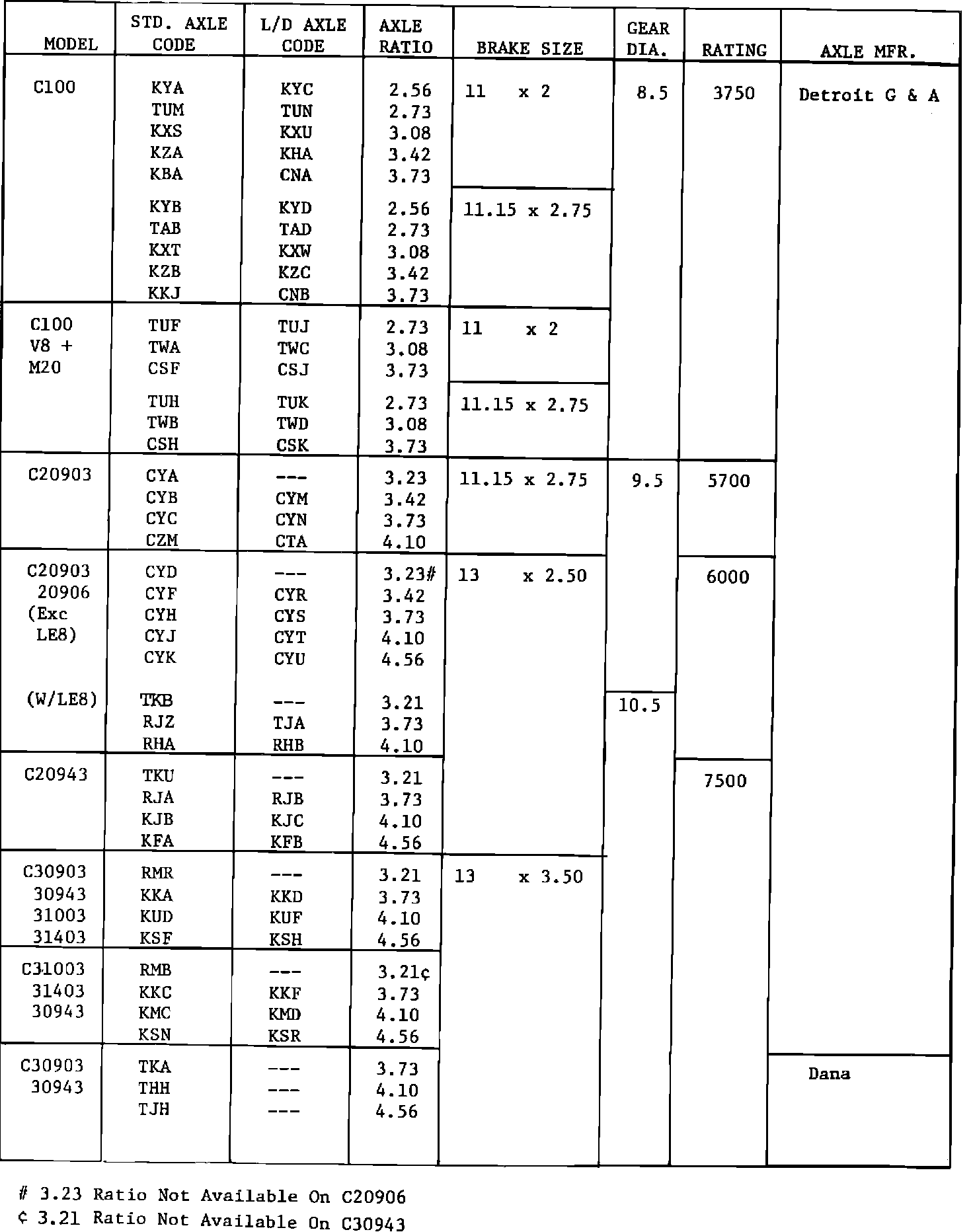

1983 "C" 10-30 REAR AXLE IDENTIFICATION:

1983 "C" 10-30 REAR AXLE IDENTIFICATION

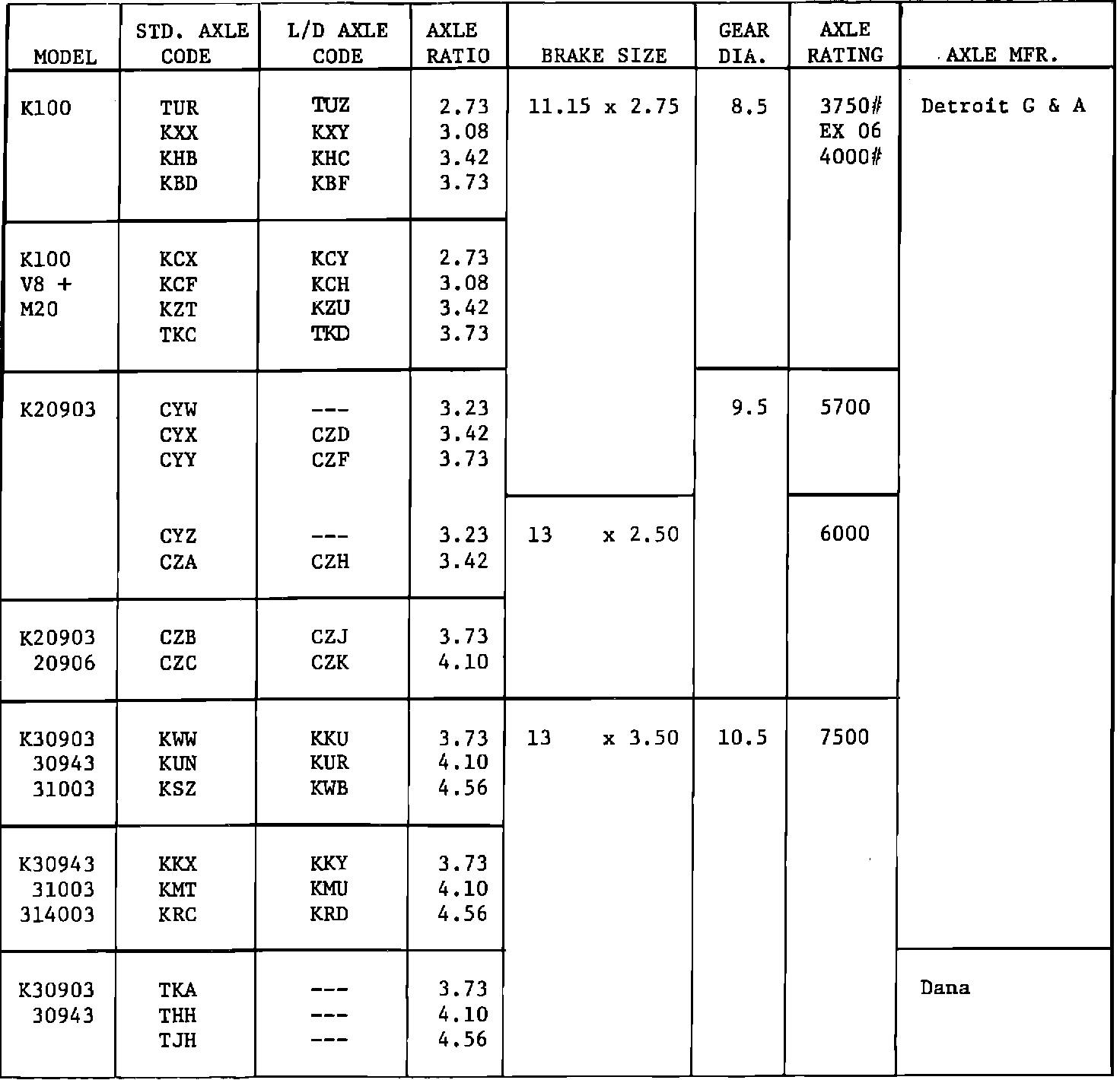

1983 "K" 10-30 REAR AXLE IDENTIFICATION:

1983 "K" 10-30 REAR AXLE IDENTIFICATION

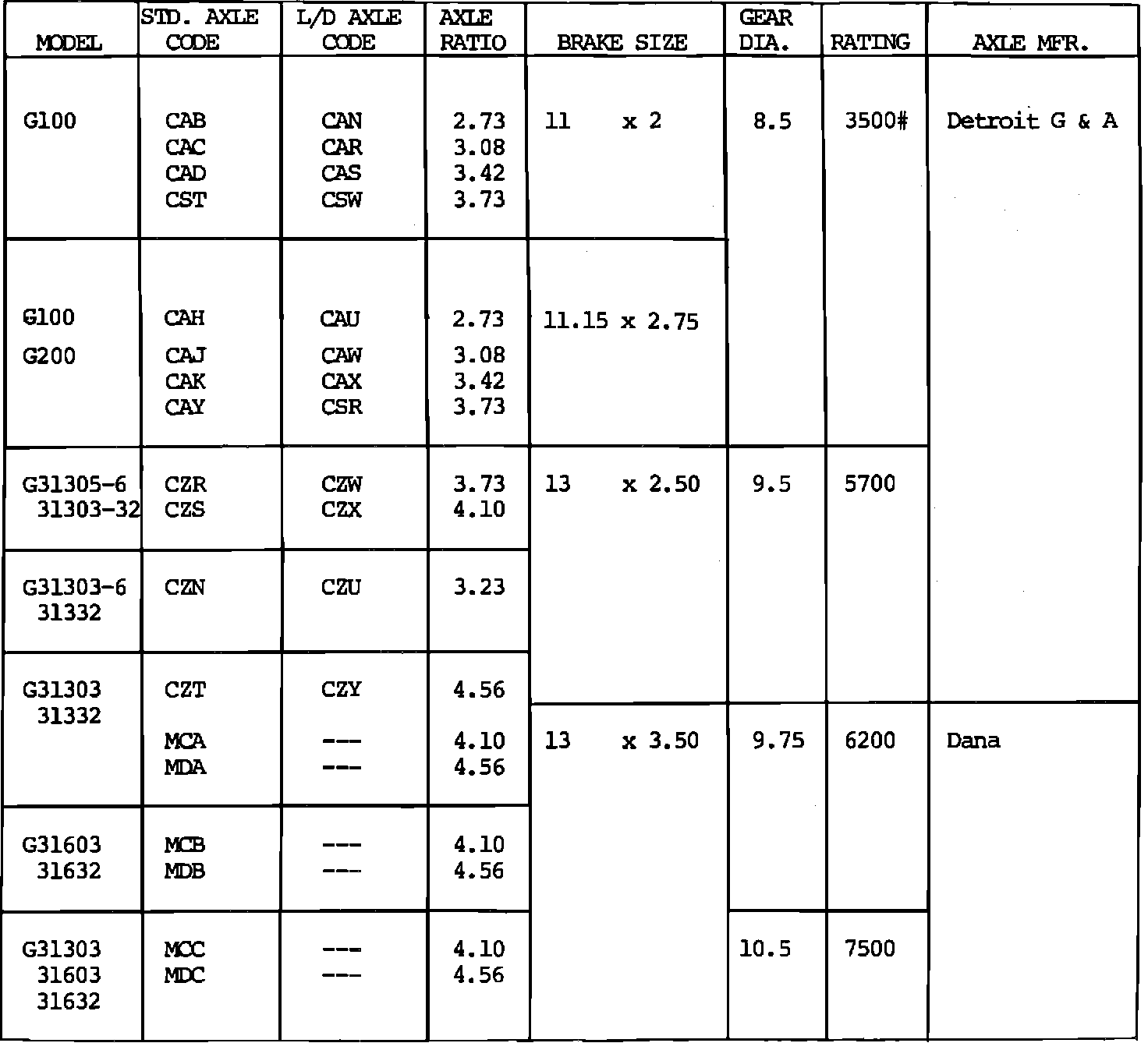

1983 "G" 10-30 REAR AXLE IDENTIFICATION:

1983 "G" 10-30 REAR AXLE IDENTIFICATION

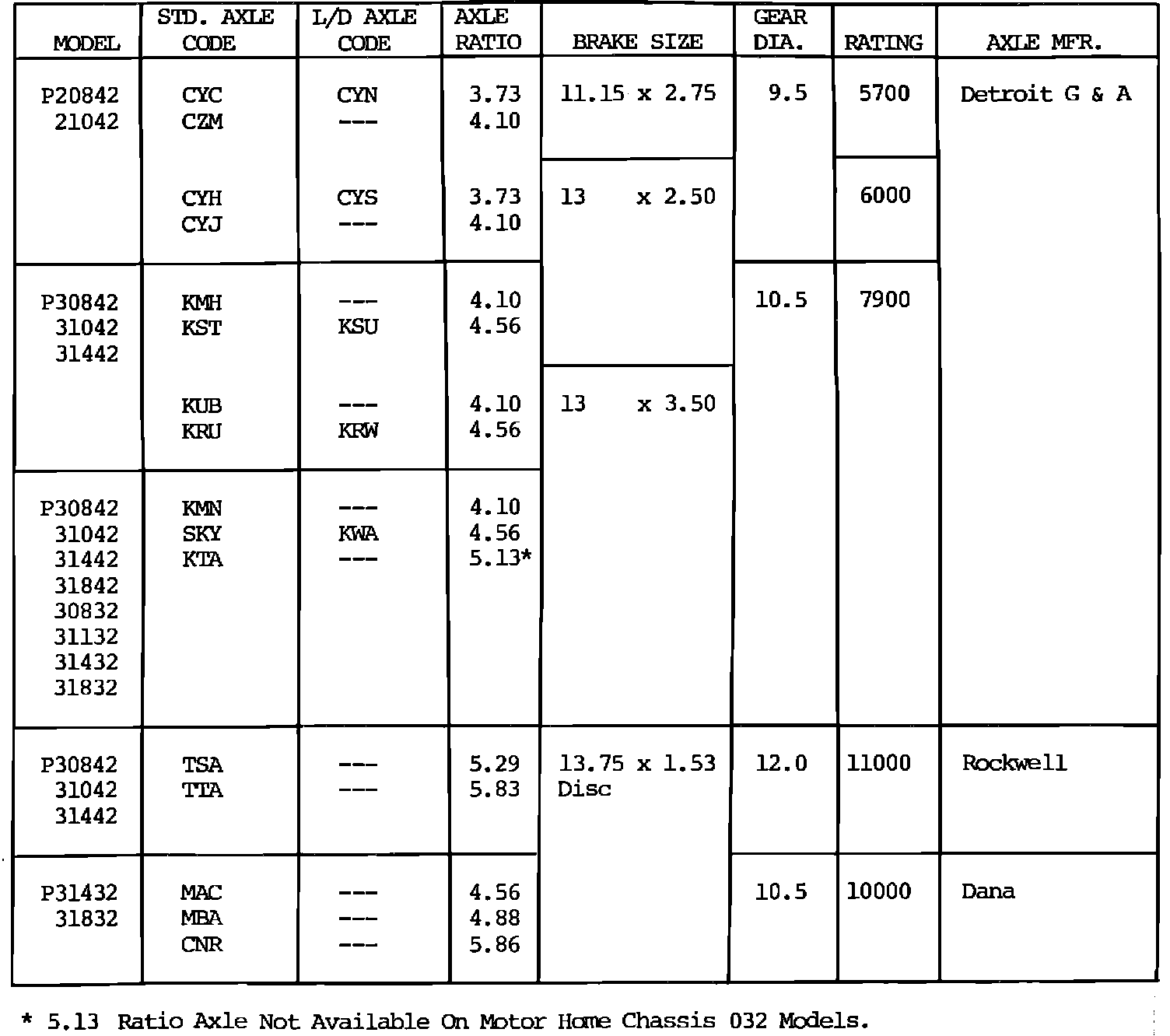

1983 "P" 20-30 REAR AXLE IDENTIFICATION:

1983 "P" 20-30 REAR AXLE IDENTIFICATION

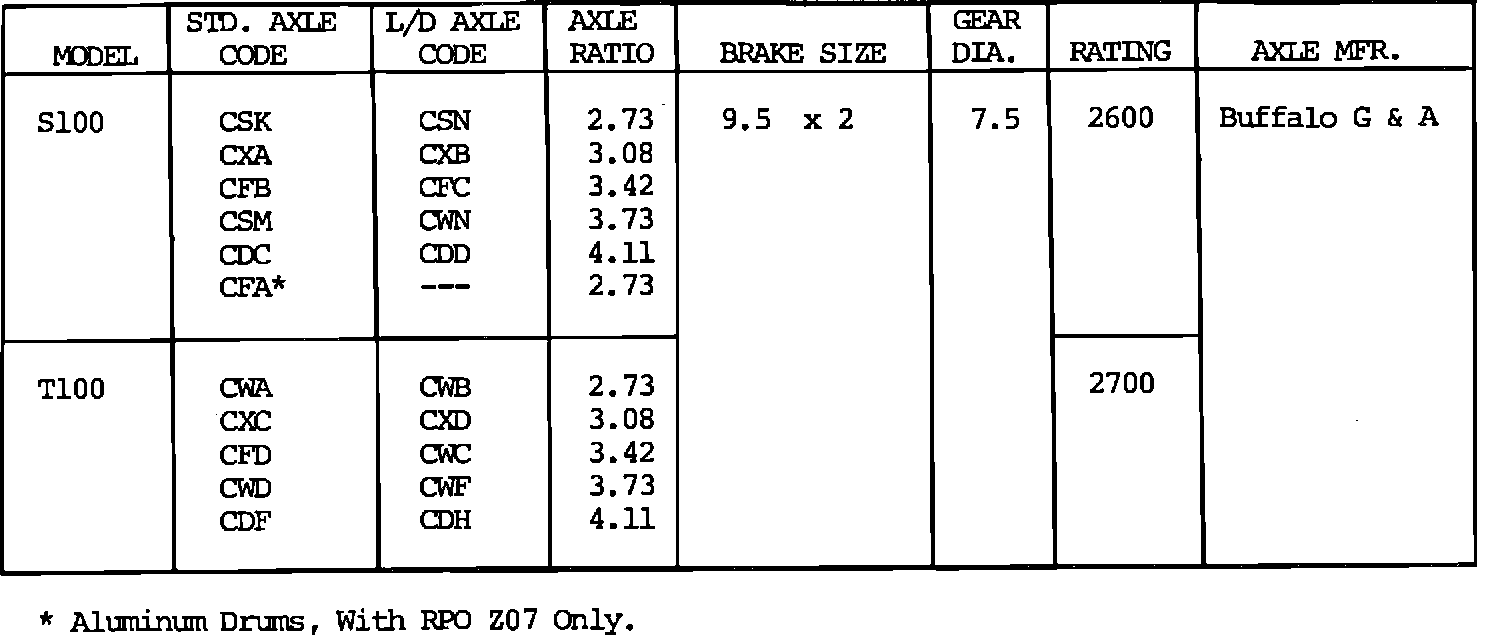

1983 S-T 10 REAR AXLE IDENTIFICATION:

1983 S-T 10 REAR AXLE IDENTIFICATION
