System Diagram

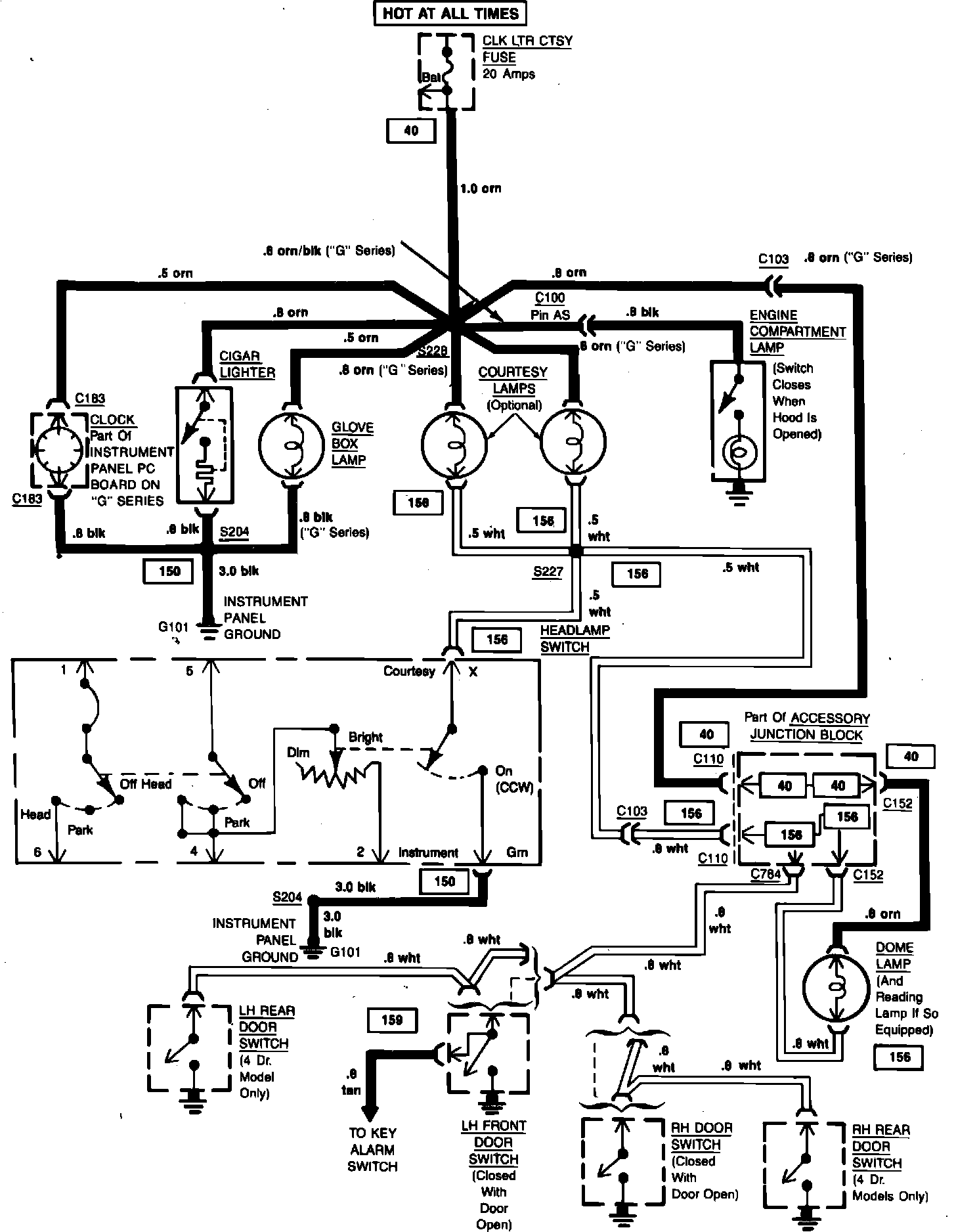

Cigar Lighter, Clock & Interior Lighting Wiring Circuit:



Cigar Lighter, Clock & Interior Lighting Wiring Circuit:
