Speaker System

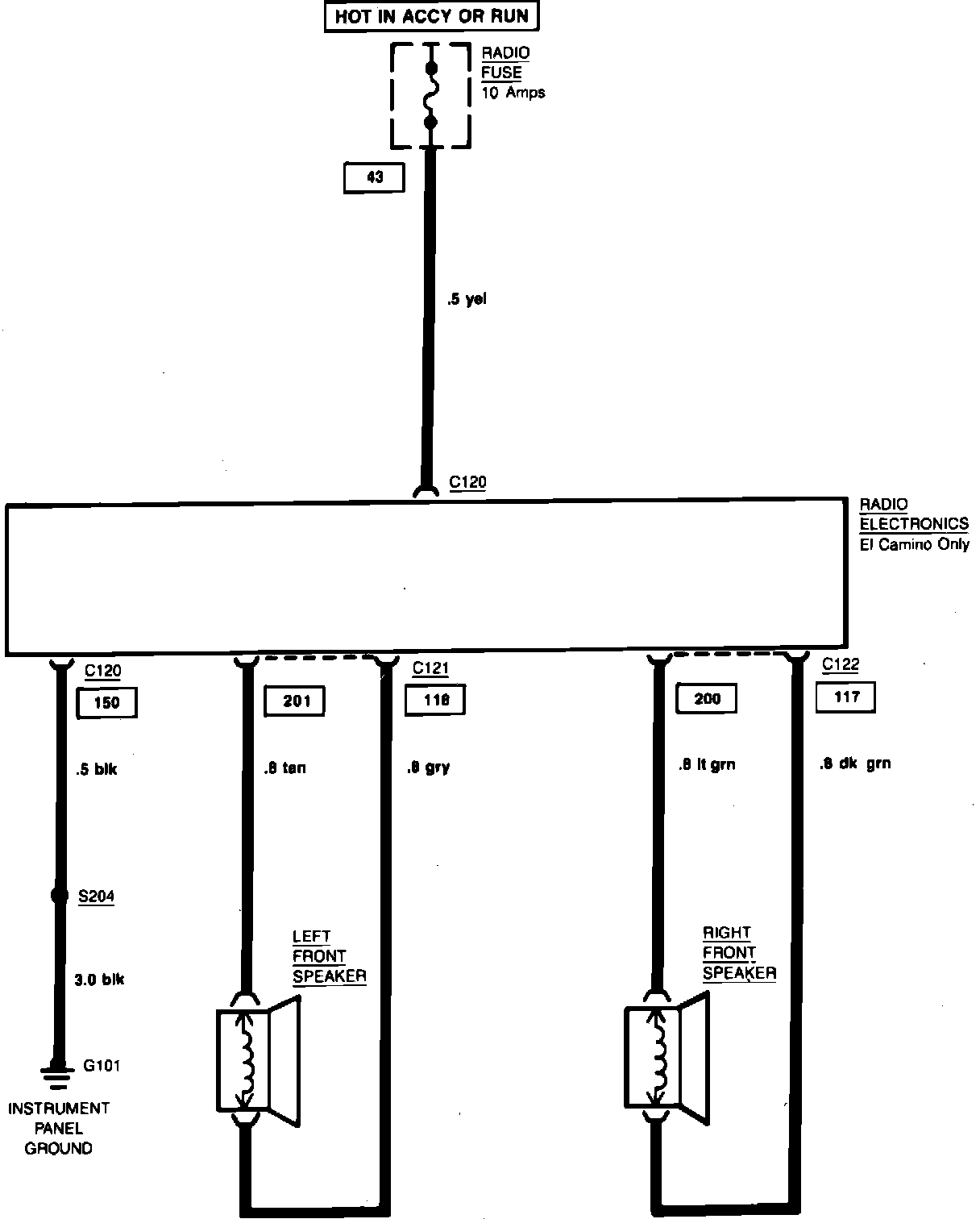

Fig. 426 Radio & Speaker Wiring Circuit (Mono & Stero). 1983 Caballero & Elcamino:



Radio & Speaker Wiring Circuit (Mono & Stero):
