Blower Motor: Service and Repair

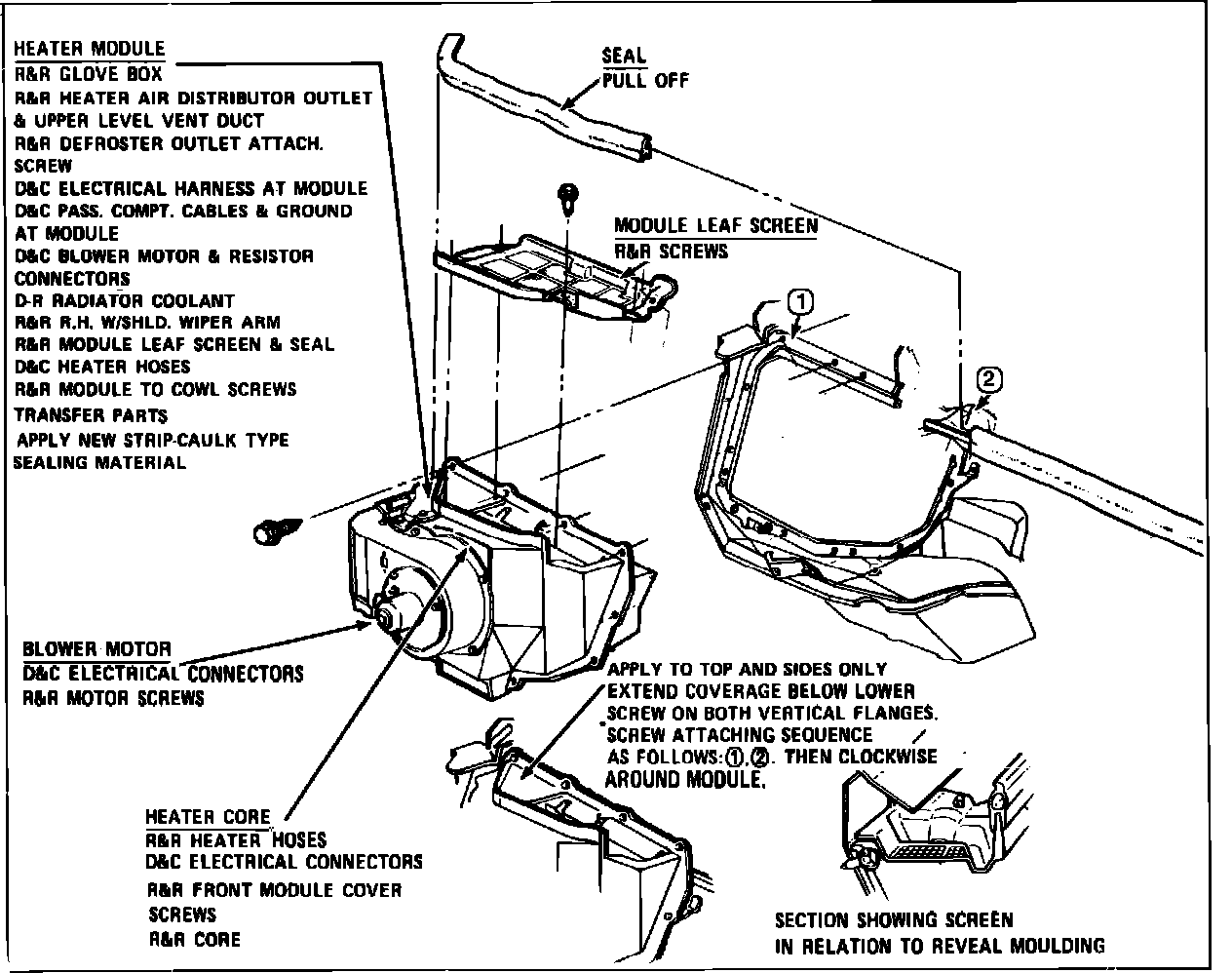

Fig. 20 Blower motor & heater core. Caballero & El Camino less A/C:

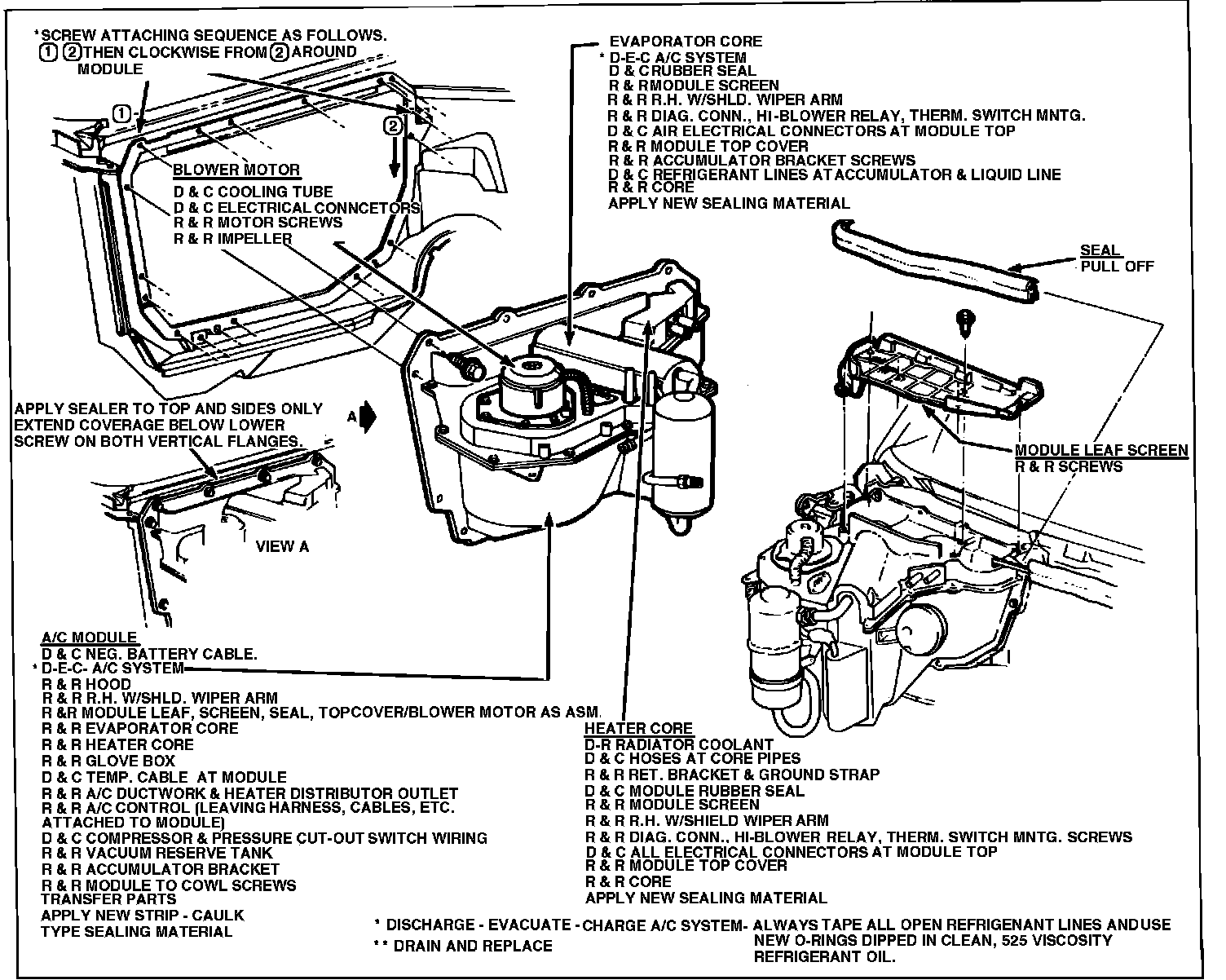

Fig. 21 Blower motor & heater core. Caballero & El Camino with A/C:

CABALLERO & EL CAMINO
1. Disconnect battery ground cable.
2. Disconnect blower motor lead wire.
3. If equipped with A/C, disconnect cooling tube from motor.
4. Remove blower motor attaching screws, then the blower motor, Figs. 20 and 21.
5. Reverse procedure to install.
