Chevy Truck
>>
1983
>>
G 30 1 Ton Van L6-250 4.1L VIN D 2-bbl
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Battery
Battery

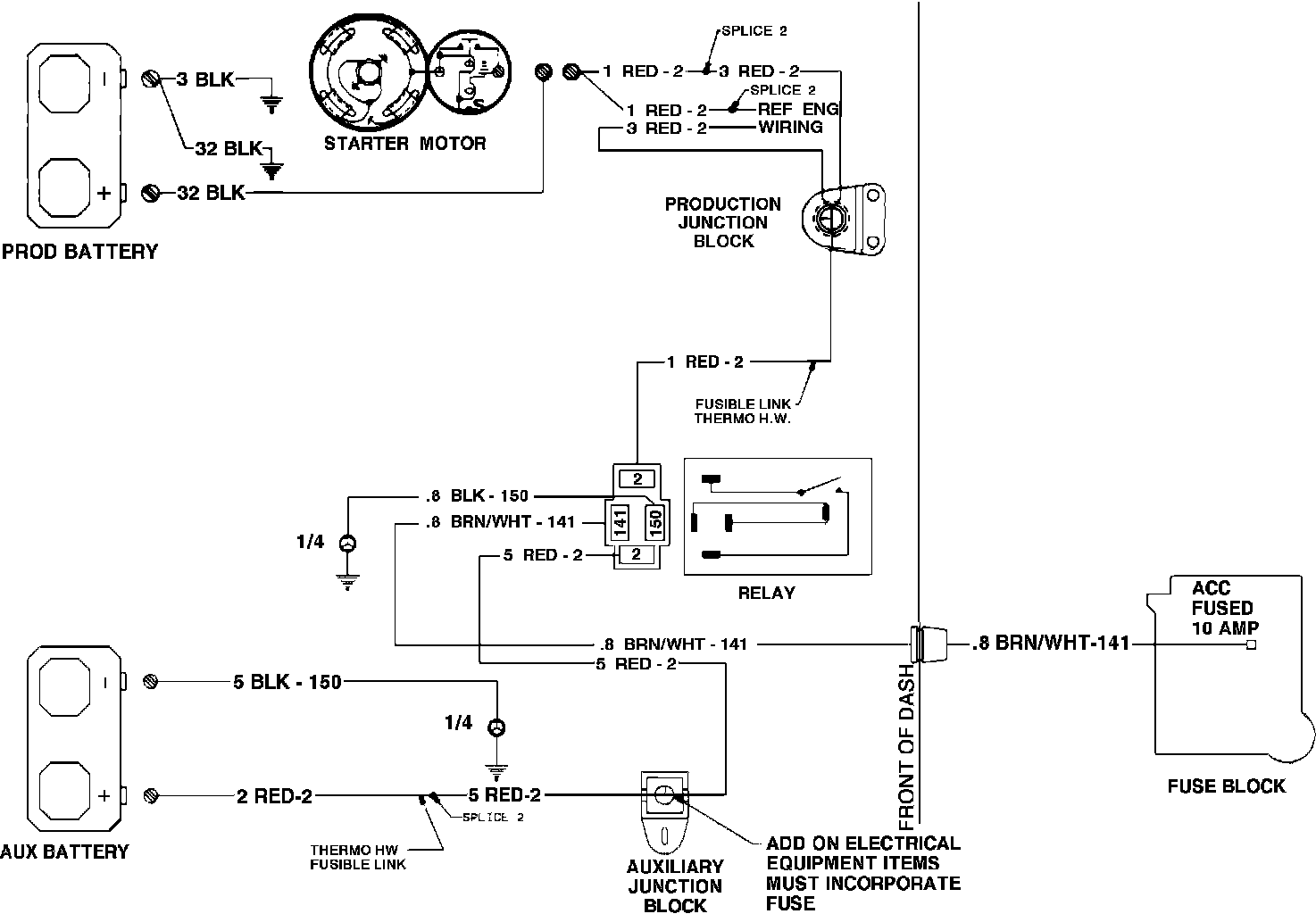

Auxiliary Battery Wiring Circuit:
