Fig. 6 California W/ Man. Trans. & Optional Fuel Tank
Fig. 6 California W/ Man. Trans. & Optional Fuel Tank

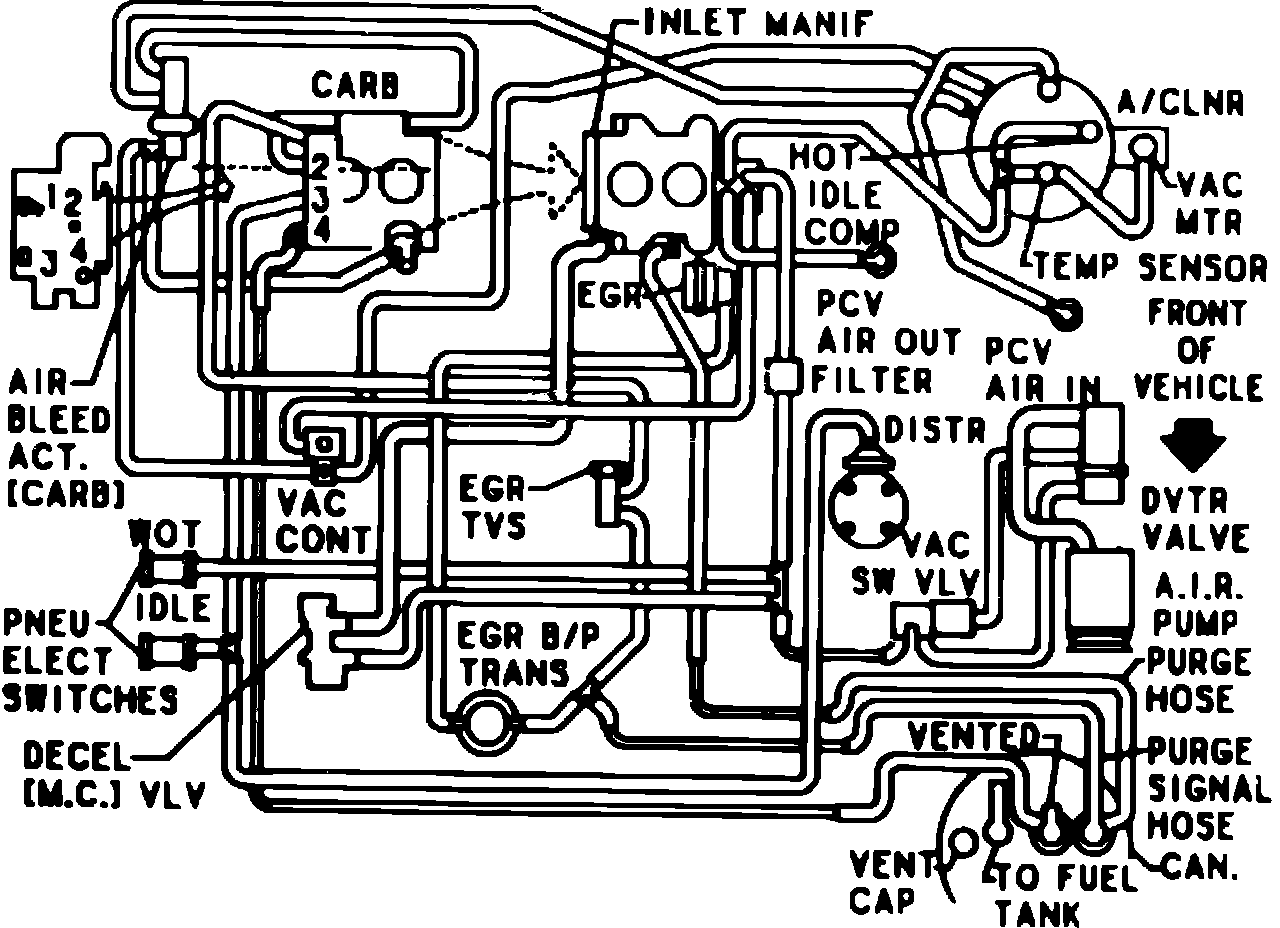

Fig. 6 Vacuum hose routing. 1983 4-119 California w/ man. trans. & optional fuel tank:
