Fig. 3 Federal W/ Man. Trans. Less Optional Fuel Tank

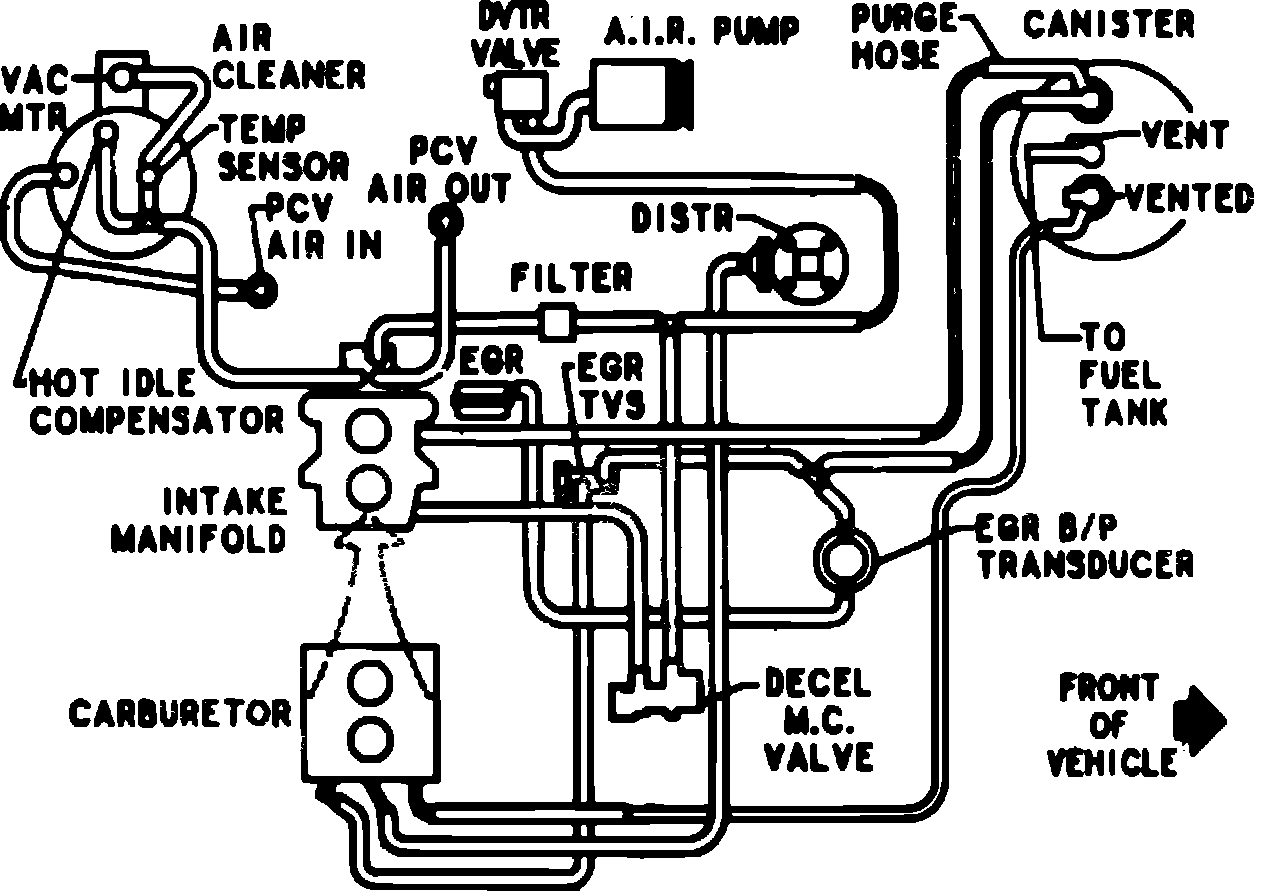

Fig. 3 Vacuum hose routing. 1983 4-119 Federal w/ man. trans. less optional fuel tank:
