Home >> Chevy Truck >> 1984 >> C 10 1/2 Ton Pickup 2WD V8-379 6.2L DSL VIN C FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Engine Compartment Wiring Circuit >> Federal

Federal

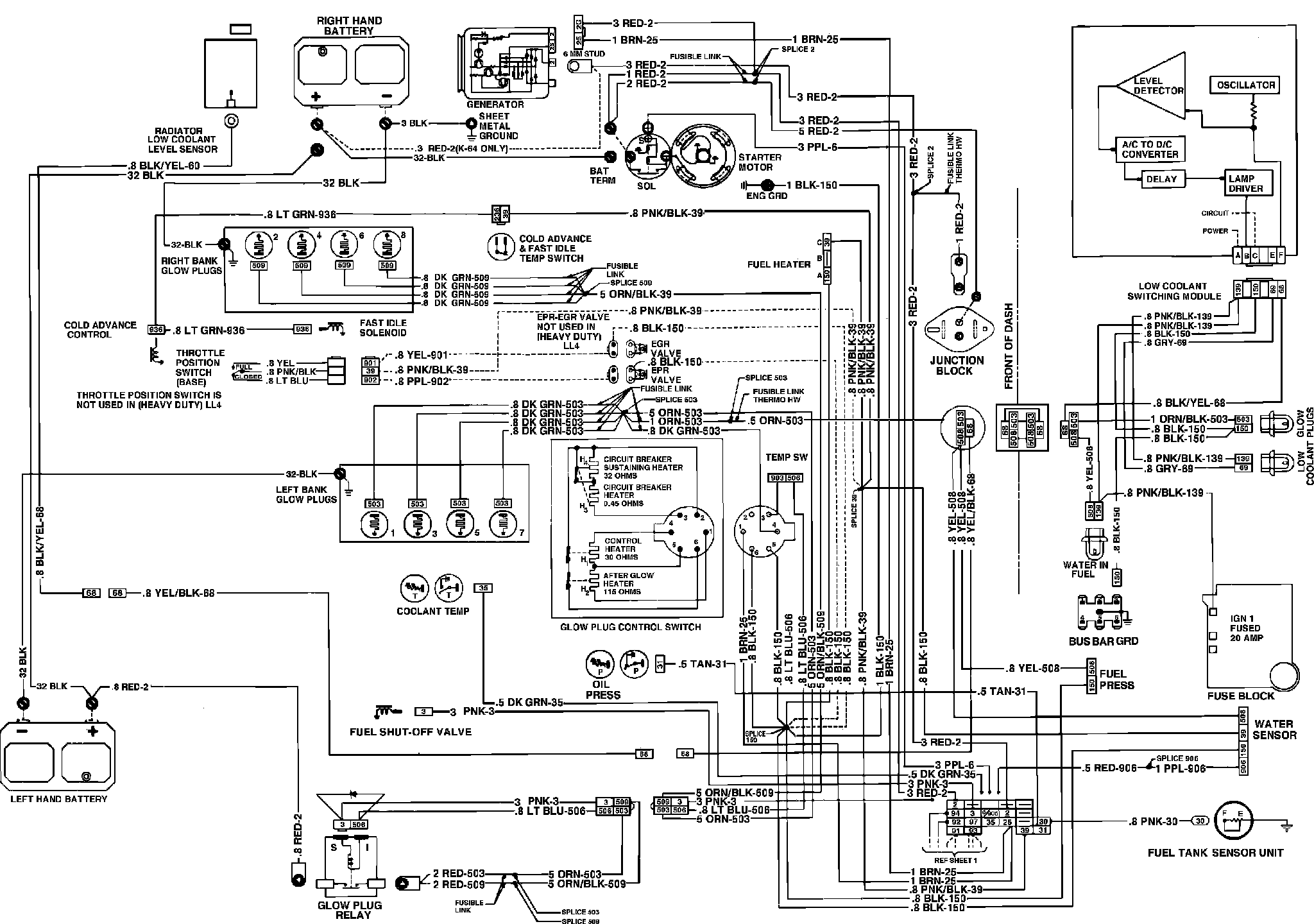

Engine Compartment Wiring Circuit. Federal:
