Intermittent Operation or Miss

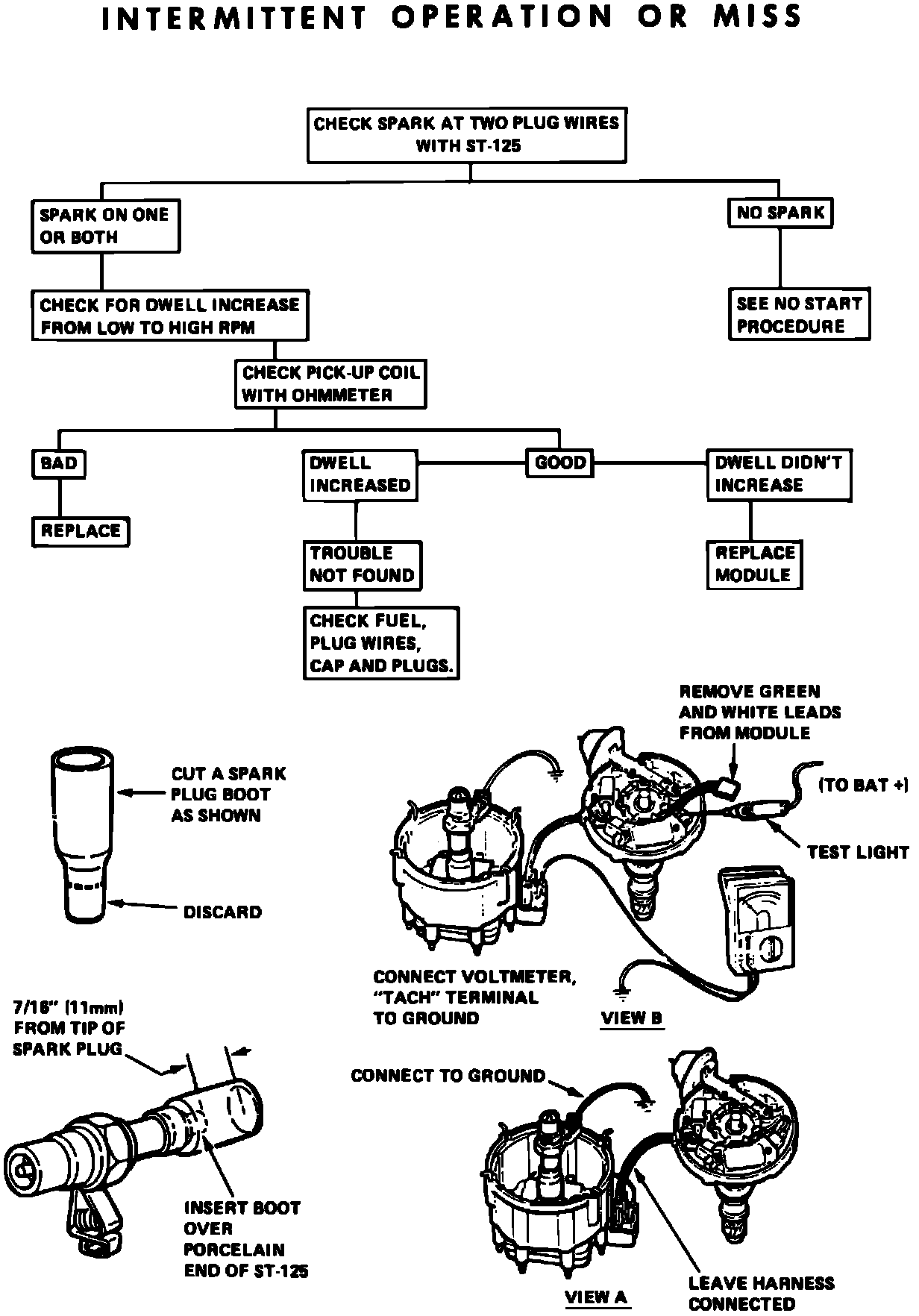

Fig. 9 High Energy Ignition (HEI) system ``Intermittent Operation or Misfire'' condition diagnosis:

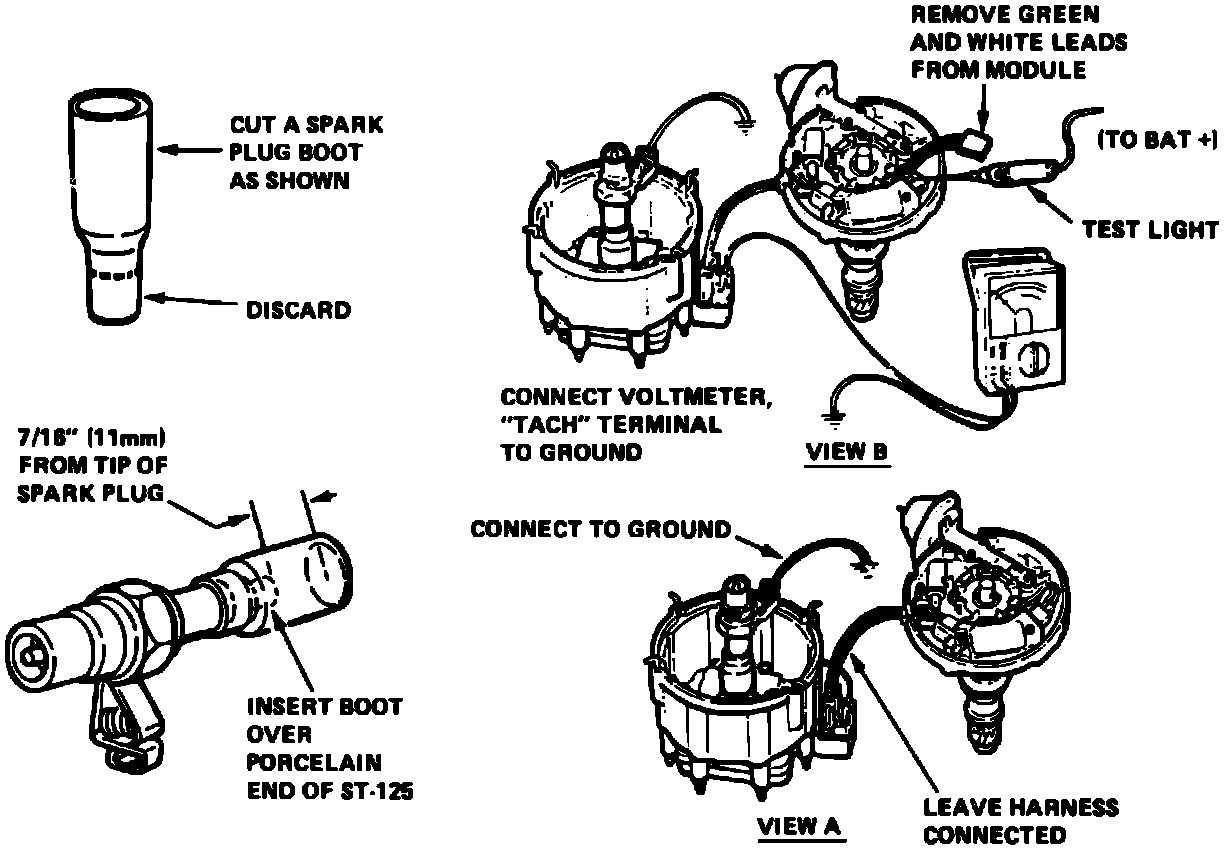

View "A" & View "B":
