Chevy Truck
>>
1984
>>
C 30 1 Ton Pickup 2WD V8-454 7.4L VIN W 4-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Emission Controls
Emission Controls

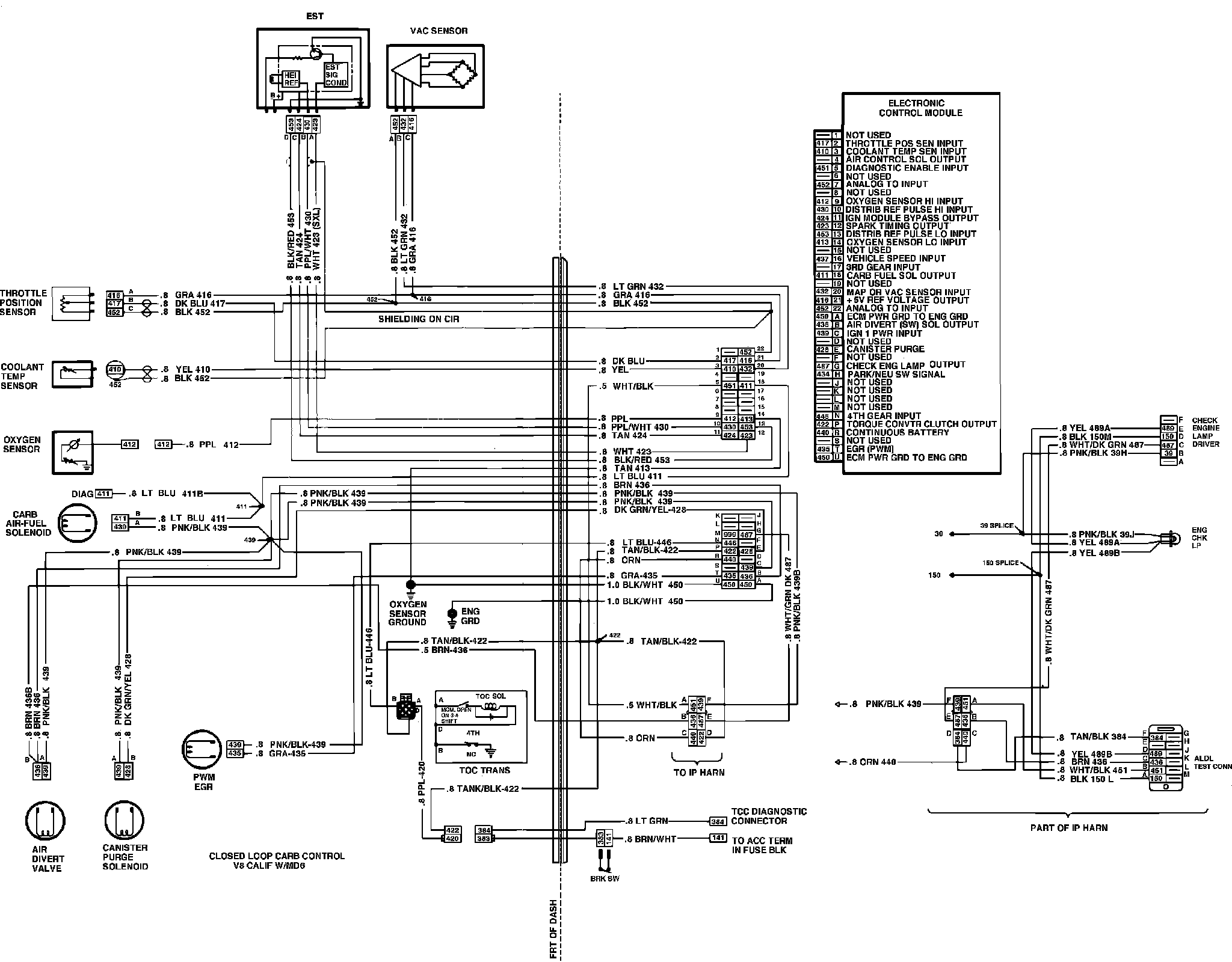

Emission Control Wiring Circuit:
