Without Pulse

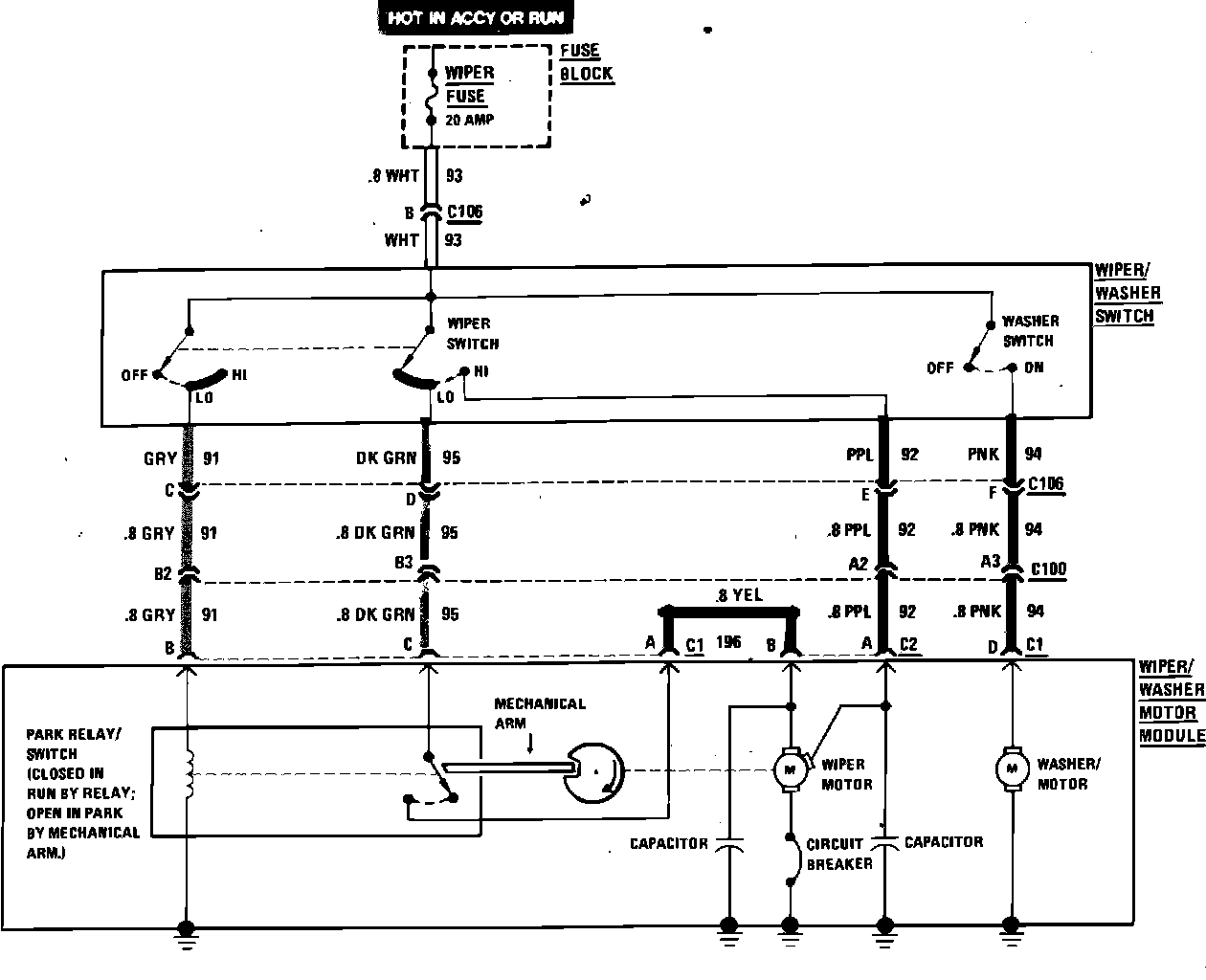

Wiper/Washer Wiring Circuit (Less Pulse):



Wiper/Washer Wiring Circuit (Less Pulse):
