Less Gauges Cluster

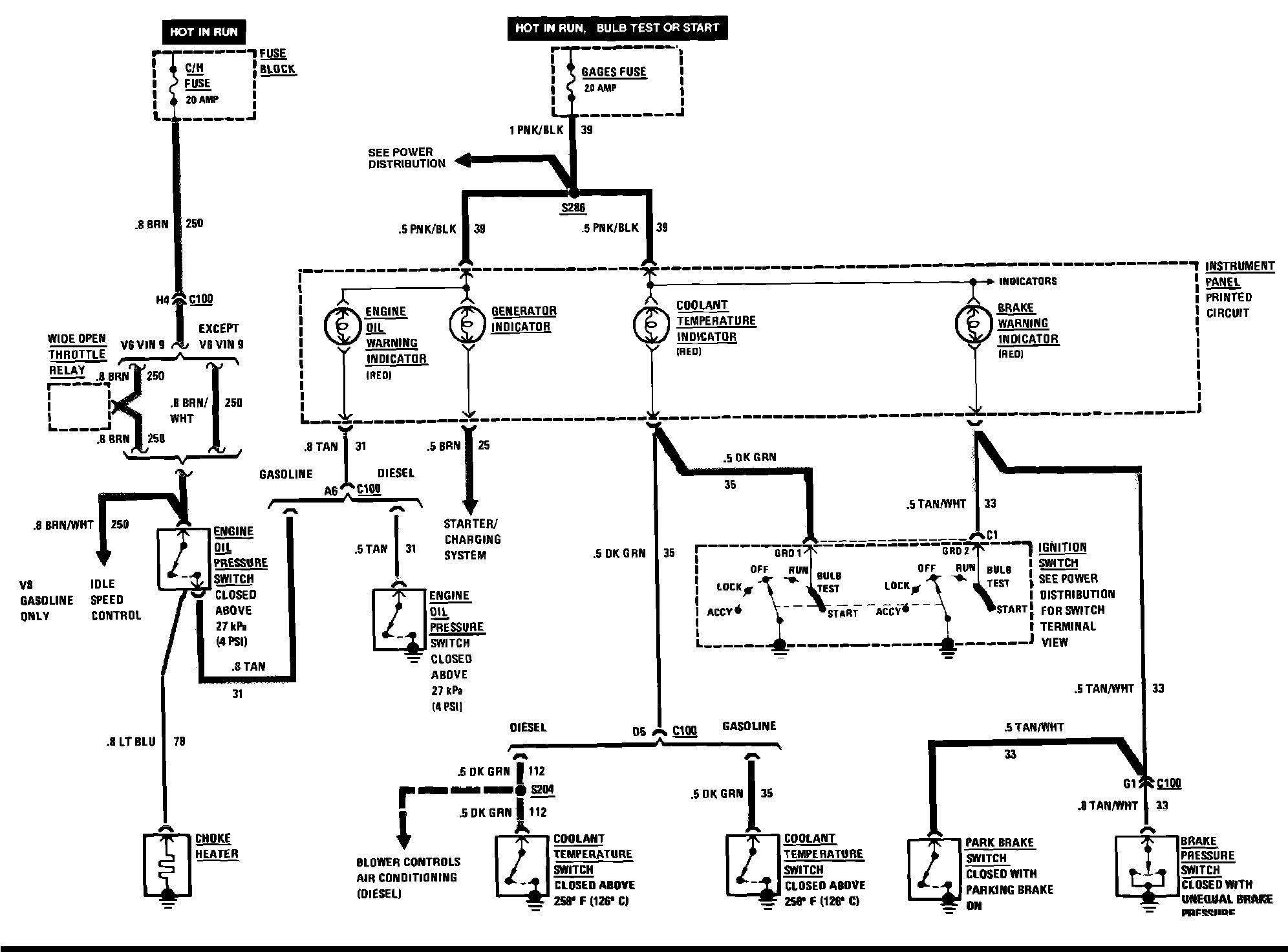

Indicators And Choke Heater:

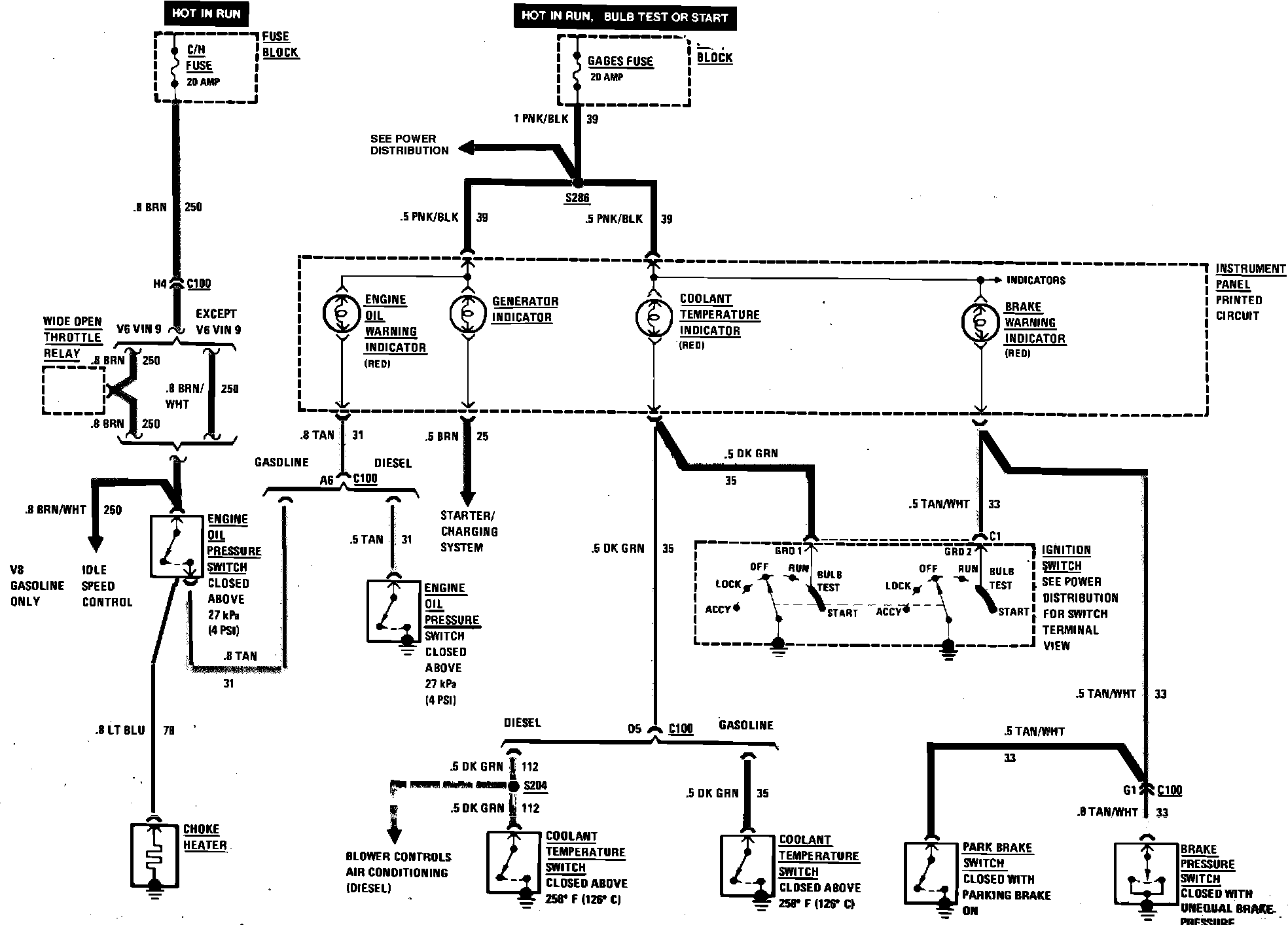

Choke Heater & Oil Gauge Wiring Circuit (Less Gauges):
