Power Locks

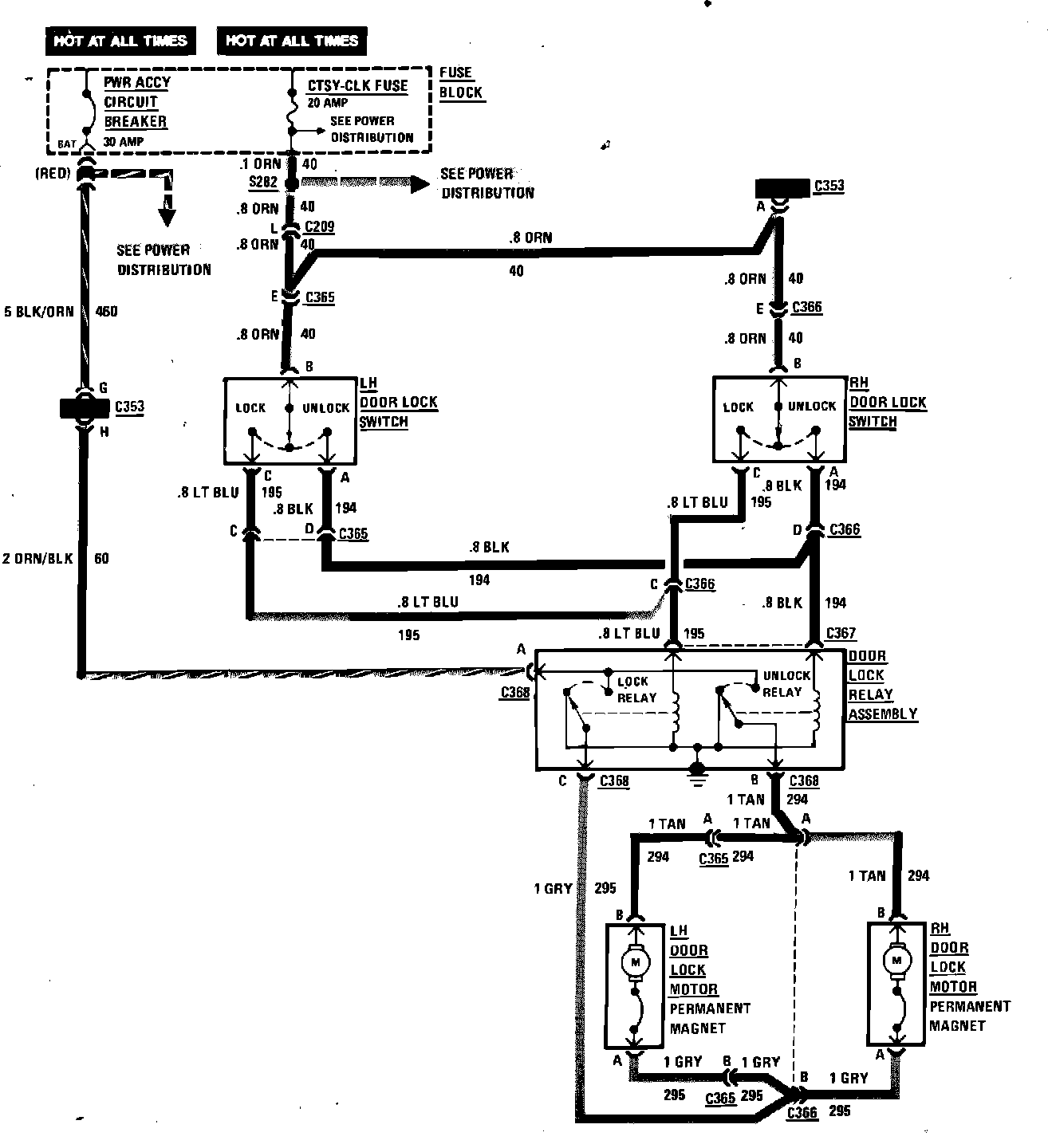

Fig. 398 Power Door Locks Wiring Circuit. 1984 Caballero, El Camino & Monte Carlo:
Power Door Locks Wiring Circuit:
