System Diagram
System Diagram

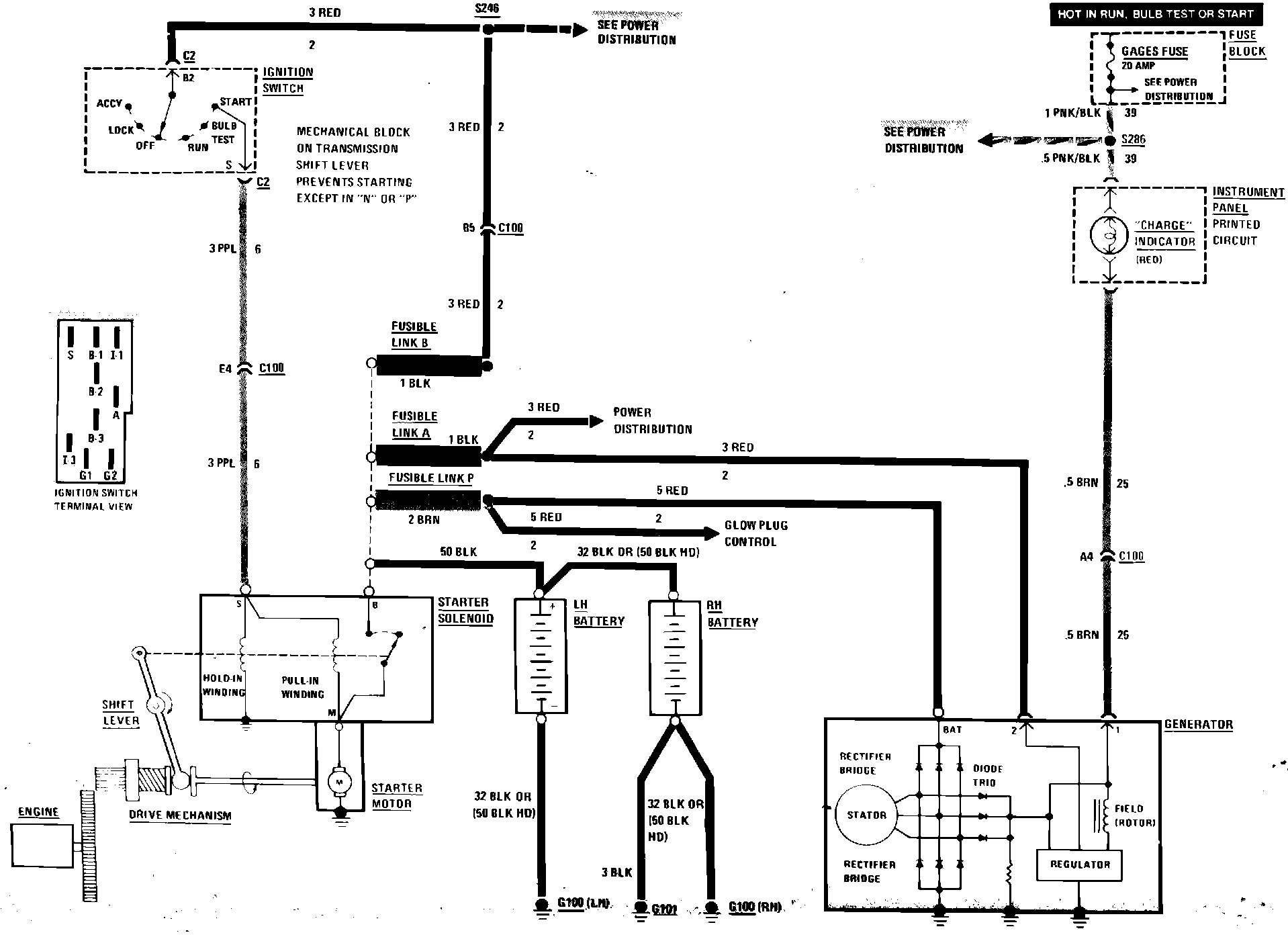

Charging System & Starter Wiring Circuit:
Charging System & Starter Wiring Circuit:
