Instrument Panel Gauges

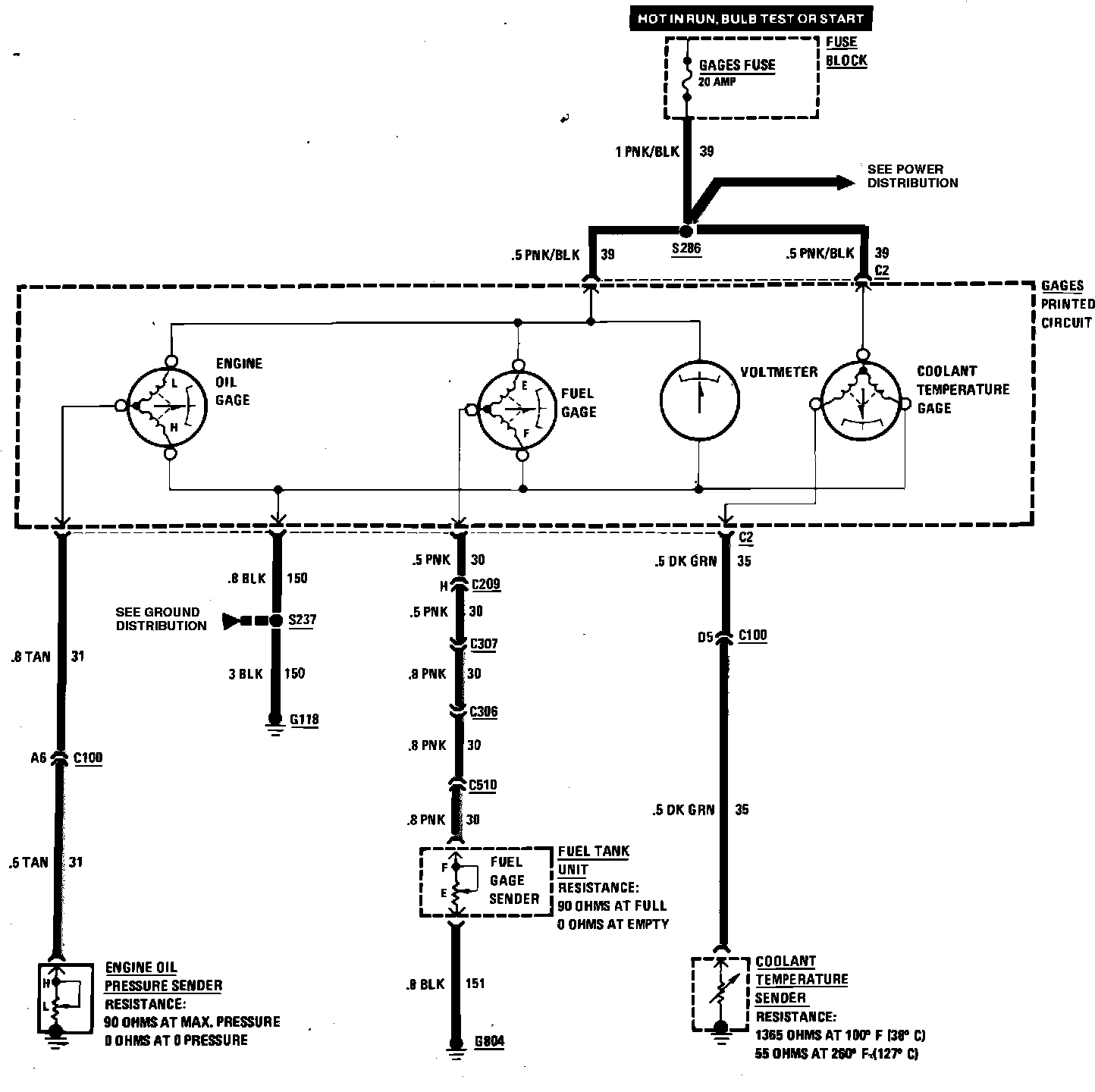

Instrument Panel Gauges Wiring Circuit:



Instrument Panel Gauges Wiring Circuit:
