Intermediate Steering Shaft - Grease Fitting
Number: 84-145Section: 3B (IX)
Date: June, 1984
Subject: INTERMEDIATE STEERING SHAFT GREASE FITTING
Model and Year: 1984 P20-30
TO: ALL CHEVROLET DEALERS
INTERMEDIATE SHAFT FLAT PLUG:

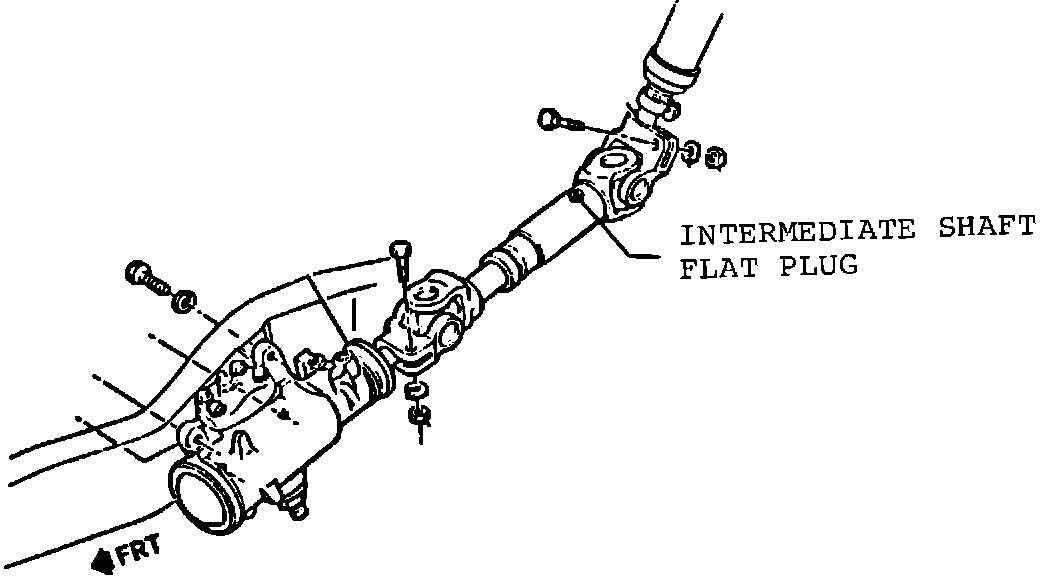

The intermediate steering shafts on some units were built with a flat plug installed on the steering shaft dust cover instead of a zerk fitting. The shaft can be lubricated by removing the flat plug shown in the illustration and by installing a 1/4" zerk fitting, P/N 9417901, in its place. The flat plug MUST BE REINSTALLED after the shaft has been lubricated, as an interference condition exists between the zerk fitting and island mounting bracket.
P/N 9417901 can be procured through WDDGM.
