Blazer

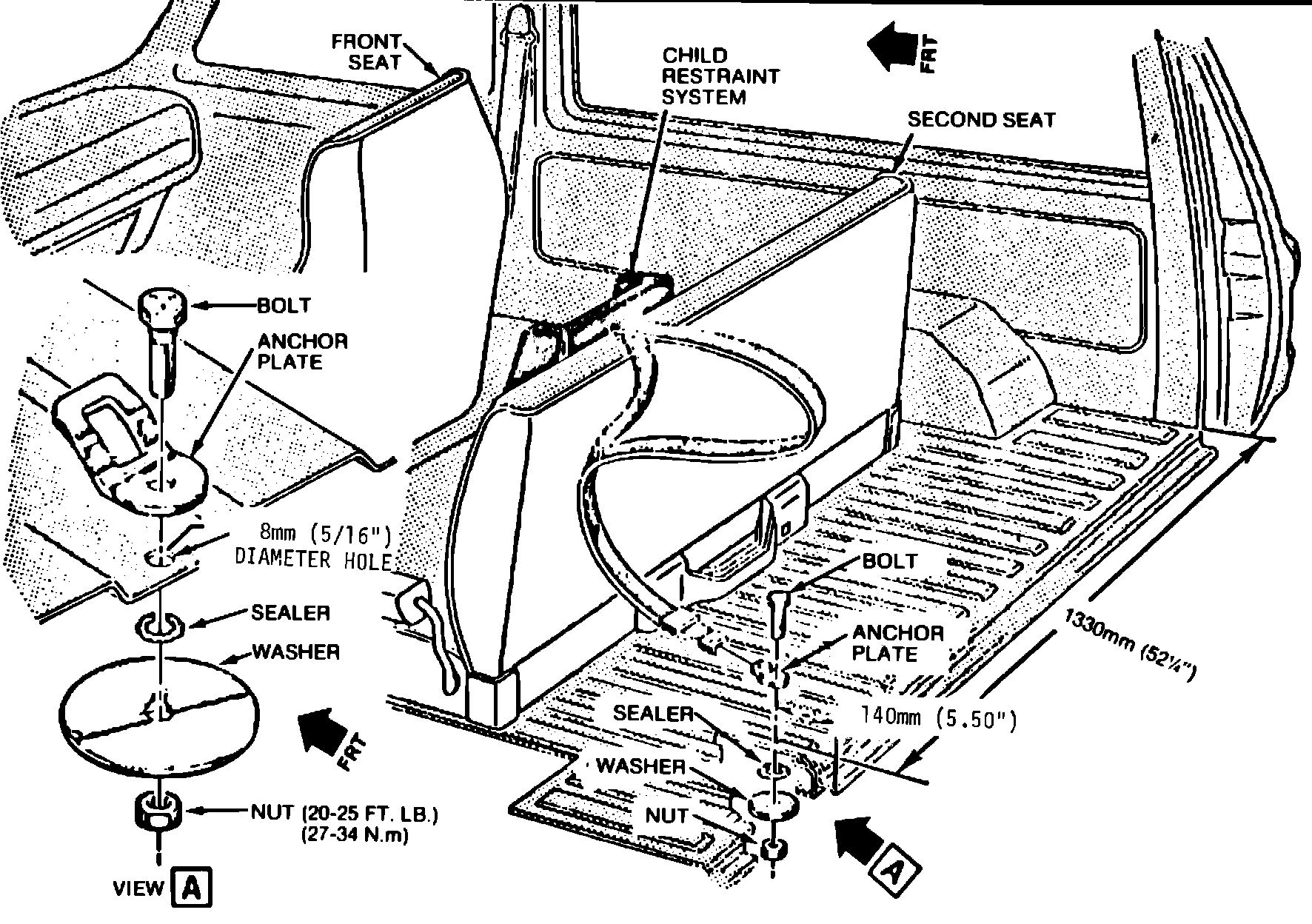

Figure JBlazer:

SECOND SEAT INSTALLATION


1. Drill a 8 mm (5/16") diameter hole through the floor pan 140 mm (5.50") forward of the rear edge of the floor pan and on the center of the depressed floor pan rib (View A - Figure J).

A. Left Seating Position - 1,330 mm (52.25") inboard of the right quarter inner panel. Refer to illustration.
2. To insure proper sealing of the hole, remove any dirt or foreign matter from around the hole on the underside of the floor pan where the sealer is to be applied.

3. Place sealer on the hole from the underside of the vehicle and assemble the bolt, anchor bracket, anchor plate, and lock nut to the floor pan as shown in View A. Tighten securely and make certain that the hole is completely sealed. Do not make the anchor installation without properly sealing the assembly.
4. Use the child seat only in the front seat-seating position for which the anchor bracket has been installed. Use the child seat as directed in your child seat manufacturer's usage instructions, latching the child seat top strap hook to the anchor bracket.

NOTICE: In the event the child seat anchorage assembly is removed, the 8 mm (5/16") diameter hole must be properly resealed.
