Chevy Truck
>>
1985
>>
Astro Van M V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
With Stereo System
With Stereo System

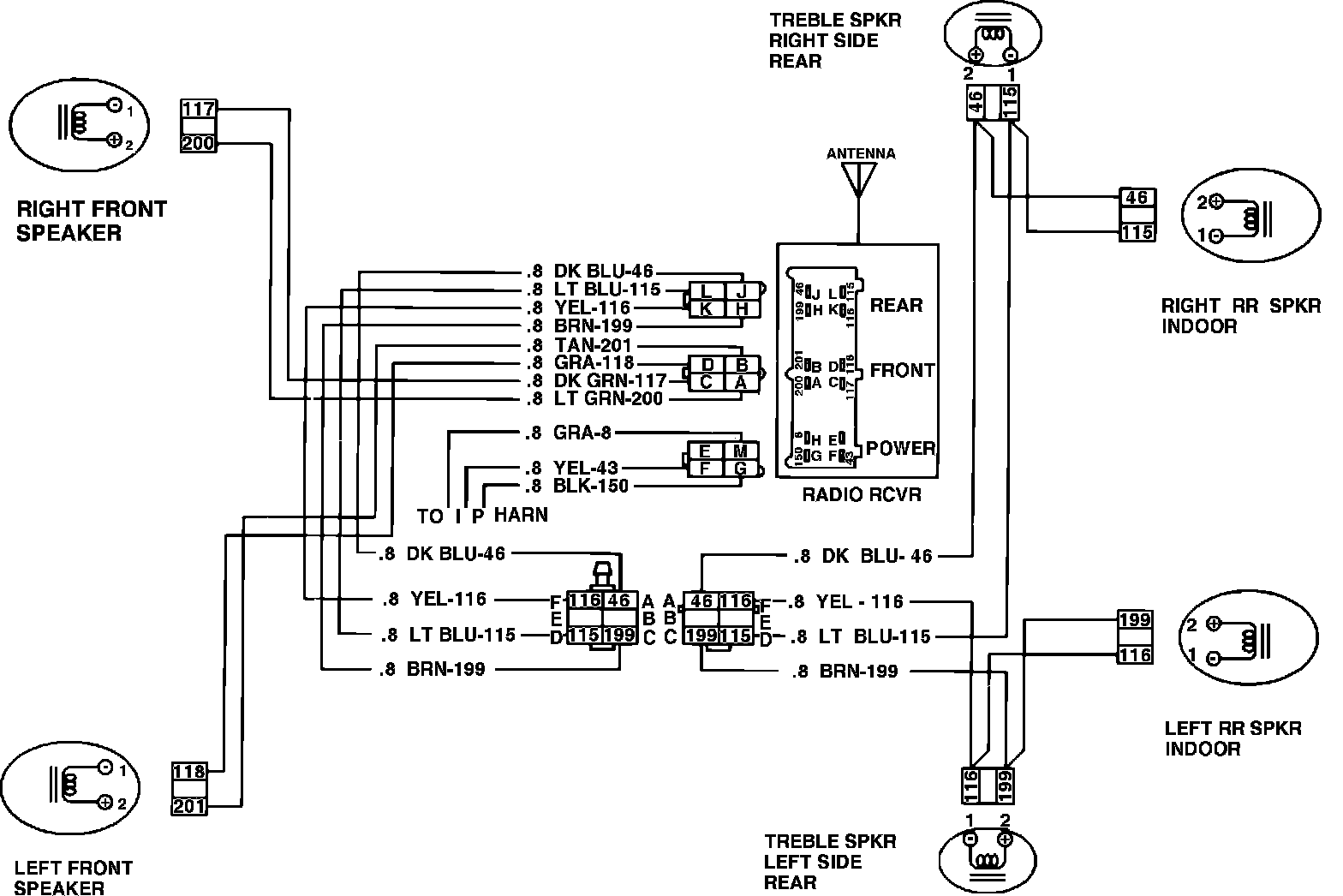

Radio Wiring Circuit. With Stereo System:
